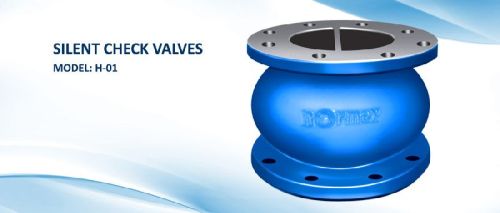

Contact SupplierNormex Valves Pvt. Ltd. brings this latest technology for the first time in India. Silent Check Valves are a short length double flanged valves with all the internals designed Hydrodynamically. This valves, when open, the annular area between the body & plunger available for flow, is equal to the nominal bore area. Therefore, unlike other spring loaded valves & conventional flapcheck valves, these valves offer lower head losses & maintains laminar flow. As the valve closes, due to return spring force, valve is “Quick Closing”. The valve gets closed before the start of back flow / return velocity. Hence, water hammer is eliminated in most of the cases.
Features:
1.Working principal Hydrodynamic guided closing.
2.The closing mechanism is guided & backed with return spring for quick closing,
Opening and perfect sealing.
3.Due to Aero/hydro dynamic effect water hammer is eliminated.
4.Very low pressure loss
5.Most suitable for clear liquids & air.
6.Silent operation.
DESCRIPTION | STANDARD MATERIAL | ON REQUEST |
BODY/GUIDE | CAST IRON (GG25) | |
PLUNGER | S.G. IRON | |
SPRING | STAINLESS STEEL | |
SEAT RING | L T BRONZE | ST.STEEL |
PAINT | ENAMEL PAINT | |
END CONNECTION | FLANGED |
Dimensions (A = size in mm)
A | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
D | 150 | 165 | 185 | 200 | 220 | 285 | 340 | 406 | 457 | 527 | 578 |
W | 85 | 105 | 128 | 156 | 194 | 264 | 346 | 430 | 500 | 600 | 686 |
H | 85 | 100 | 120 | 140 | 170 | 230 | 290 | 355 | 398 | 475 | 560 |
