Signal Generator Demonstrator SE-806

Listing ID #3524894

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Category : Electronics Measuring Instruments Demonstrator (Series : 800)Product Name : Signal Generator Demonstrator Model No. : SE-806Product Details : This has Built-In DC....

View More Details

Send Enquiry

Product Details

Product Category : Electronics Measuring Instruments Demonstrator (Series : 800)
Product Name : Signal Generator Demonstrator
Model No. : SE-806
Product Details :

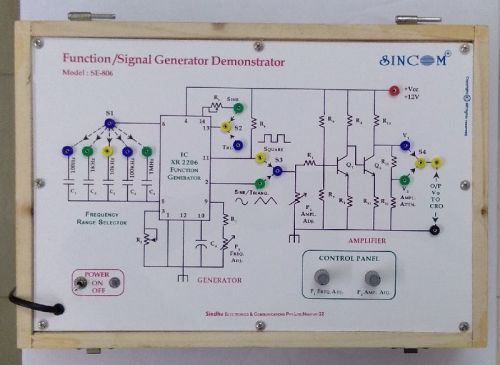

This has Built-In DC ±12V/500mA regulated fixed Power supply, IC XR- 2206 with its associate circuitry of variable RC Bank and BJT NPN 548 as direct coupled amplifier wired as to provide Sine, Square, Triangular signal O/Ps with variable amplitude (10Vmax) & frequency (100KHzmax) in steps, on board frequency and amplitude control, frequency range selector in 100Hz/1KHz/ 10KHz/100KHz/1MHz, sine/square/triangular output selector, complete setup with maximum test points.

Objectives :
- To Study operation of IC XR-2206 as Function generator to generate Sine, Square, Triangular wave O/P.
- To Observe & Note time period, amplitude , frequency of Sine, Square, Triangular wave O/P w.r.t. change in RC Components values.

Accessories Included : Set of Patch Cords, Operating Manual.
