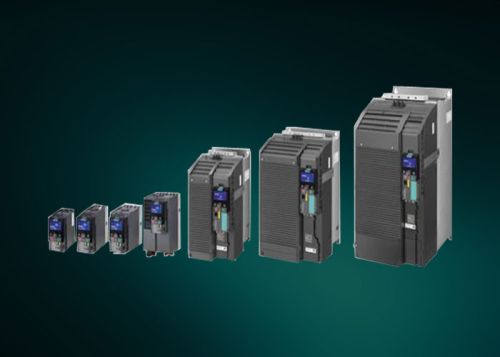

Siemens SINAMICS G120C VFD

Listing ID #6244132

Get Latest Price

MOQ 1 Piece
Brand NameSiemens
Voltage3AC 380 - 480 V +10 % / -20 %
Ambient temperature-10 Deg to 40 Deg C without derating / up to 60 Deg C with derating
StandardsCE, UL, cUL, c-Tick
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Brand Name Siemens
Voltage 3AC 380 - 480 V +10 % / -20 %
Ambient temperature -10 Deg to 40 Deg C without derating / up to 60 Deg C with derating
Degree of protection IP20
EMC According to IEC 61800-3 up to Category C2
Standards CE, UL, cUL, c-Tick
Communication PROFINET, Ethernet / IP, PROFIBUS, US / Modbus RTU
Environmental class Class 3C2, (3C3 with SIPLUS)
Safety Technology Safety Integrated : Safe Torque Off (STO); controlled via terminals or PROFIsafe
Power range 0.55 to 132 kW
Control procedure U/f (linear, square law, FCC, ECO), vector control without encoder (SLVC)
Functions Fixed velocity setpoint, PID controller, motor holding brake control

SINAMICS G120C is especially compact with a high power density, and offers a well-balanced combination of functions to address a wide range of applications. With its seven frame sizes, it covers a performance range of 0.55 kW to 132 kW.
Compact :

Compact even in high performance ranges up to 132 kW.
Integrated DC-line reactor and EMC filter.
Side by side installation of all frame sizes without current or performance reduction Simple commissioning and operation.
Intuitive series commissioning, cloning function through BOP-2, IOP or SD card.
Simple and fast software parameterization Perfect integration.
Full integration of the drives in the TIA Portal system diagnostics.
The use of the TIA Portal library concept ensures the easy reusability of the converters, including the parameter and hardware components Leading-edge technology.
The energy-efficient, sensorless vector control allows high torques with low frequency setpoints.
Further external components are not required due to the certified safety function Safe Torque Off, which is integrated as standard. Reliable communication.
All commonly used bus systems such as PROFINET, EtherNet / IP, PROFIBUS and USS / Modbus RTU are supported.
