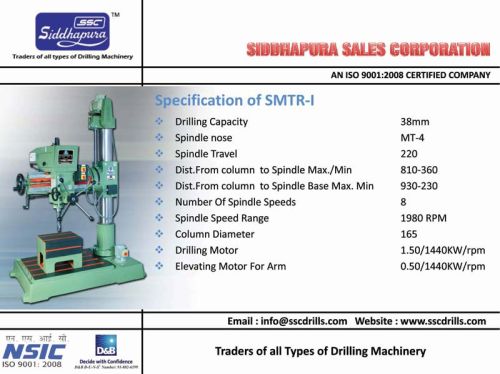

Contact Supplierwe are offering universal radial drilling machine ser-i technical specification : capacity : m.s. c.i. drill capacity 38 mm 38 mm drill head : 1. spindle nose mt 4 2. spindle travel 220 3. no. of spindle speed 8 4. range of spindle speed 62-1980 5. range of power feed mm rev. (2) 0.08-0.04 power : h.p. v. belt main motor 1.5 b-44 arm elevating motor 0.5 a-23 working table : l x m x w mm. 380x300x300 working range : 1. drilling radius max.min. mm. 895440 2. distance from column to spindle max.min. mm. 810360 3. max drill head travel mm. 450 4. distance from base to spindle max.min mm. 930230 5. diametere of column mm. 165 6. swivel of arm lr side mm. 90 base plate : 1. l x w x h mm. 925x600x120 mm 2. working surface mm. 820x610 mm 3. no. of t-slots mm. 416 mm 4. overall height mm. 2000 mm wooden case size l x w x h mm. 1250x1550x2000 mm
