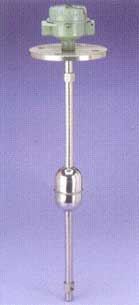

Avail from us, superior quality Liquid Level Transmitter, which is used for continuous level indication and control for any liquid that is chemically compatible with its wetted parts. Our range of Liquid Level Transmitters is duly checked on different parameters at each level of production process in order to deliver a flawless range of Liquid Level Transmitter to the clients.
Features :
Applications :
Specifications
| Level Transducer | |
| Measuring Range | 3 meters max. |
| Accuracy | +/- 10 mm |
| Installation | Top Mounted |
| Terminal Enclosure | Cast Aluminium, weather proof to IP 56/65 and Ex. Proof For Gr. II A & II B/ Gr IIC |
| Conduit Connection | Brass, ¾" ET or ½" NPT |
| Wetted Parts | SS304, SS316 or PP |
| Float | SS 316, Magnetic |
| Process Connection | Flanged to BS/ ANSI/ ASA/DIN |
| Min Liquid Sp. Gr. | 0.7 |
| Max. Temperature | 60oC (PP) / 90oC (SS) |
| Test pressure | 3 kg/cm2 (PP)/ 10 Kg/cm2 (SS) |
| Transmitter (Integral With Transducer) | |
| Wiring System | 2 wire/ 3 wire |
| Input | variable resistance from transducer |
| Output | 4 - 20 mA/0 - 10 VDC |
| Max. Load | 400 ohms |
| Supply | 24 VDC |
| Display Unit | |
| Digital Display | 3½"or 4½" digits |
| Power Supply | 24 VDC/110 VAC/230 VAC |
| Enclosure | Panel/Wall mounted |
| Set Points (Optional) | One to four |
| O/P Relay Contacts | 5 A, 230 VAC |
