Contact SupplierWorking thickness from 0.8mm to 3mm in single pass Working Speed: 0.5 mpm to 5 mpm Why you need Sheet Deburring machine in your shop floor

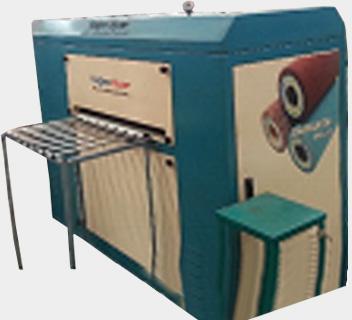

DB SAMRTH Fabrika series blank Sheet Deburring machine is widely acceptable from Stainless Steel sheet metal Fabrikation. And running successfully
Features :The Valgro-Hyzer precision Deburring Machine is suitable for surfacing of nonferrous and ferrous metals. This brushing / Deburring machine provides good quality of Deburring effect with removal of micro scratch, acid layer & Oxide from the surface with safe and economical way. This machine is highly productive than conventional deburring system, can eliminate manual deburring work. Valgro has developed various model for sheet Deburring in configuration of flexibility and lower operating costs. Sheet Deburring machines are available for both dry and wet processing.
Model “SAMARTH” | DB-14-2 Baby | DB-18-2 Baby | DB-24-2 Baby | DB 32.1 HD800mm | DB 50.1 HD1200mm | DB62-1 1550mm |
---|---|---|---|---|---|---|
Brush Station | Two station | Two station | Two station | Single station | Single station | Single station |
Working system | Dry roller | Dry roller | Dry roller | Dry roller operation | Dry roller operation | Dry roller operation |
Total Dimensions (H X W X L) @ | 1150 x850 x 750mm | 1150 x1050 x 750mm | 1150 x1250 x 750mm | 1600mm H x 2000mm W x 815mm L | 1600mm H x 2500mm W x 815mm L | 1600mm H x 3000mm W x 815mm L |
Machine Weight @ | 800 Kg | 1200 Kg | 1200 Kg | 1500 kg | 1800 kg | 2500 kg |
Working width | 350mm | 450mm | 600mm | 800 mm | 1250 mm | 1550 mm |
Sheet size (minimum) | 150 mm | 150 mm | 200 mm | 250 mm | 250 mm | 250 mm |
Sheet thickness Min / Max | 0.8 – 3 mm | 0.8 – 3 mm | 0.8 – 3 mm | 0.8 – 3 mm | 0.8 – 3 mm | 0.8 – 3 mm |
Brush Dimensions (Od x Width x ID) | 115 x 350mm | 115 x 450mm | 125 x 600mm | 225 x 800mm | 225 x 1250mm | 225 x 1550mm |
Brushing speed | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
Brush Oscillation facility | Available | Available | Available | Available | Available | Available |
Conveyor width | 350mm | 450mm | 600mm | 810mm | 1270mm | 1550mm |
Conveyor speed | Variable | Variable | Variable | Variable | Variable | Variable |
Electrical parameters | 440V-50-60Hz | 440V-50-60Hz | 440V-50-60Hz | 440V-50-60Hz | 440V-50-60Hz | 440V-50-60Hz |
Brush Power Motor | -- | -- | -- | -- | -- | -- |
Total Power | 4.5 | 4.5 | 7 | 10.5 | 14 | 16.5 |
