Shear Connector

Listing ID #1472421

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

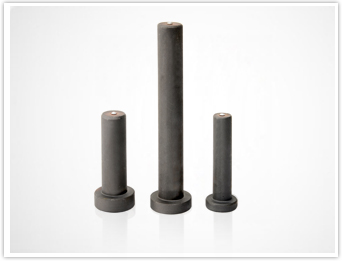

Shear Connector Studs for ARC WeldingShear Connector studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction. Length : Length shown here is before weld. The shear connector studs, when welded to base metal will be approximately 5mm shorter after weld. Lengths for shear connector studs are generally set by governing specifications. Metaforge can manufacture studs in other lengths and as per your specifications.

View More Details

Send Enquiry

Product Details

Technical Specifications

Specification	Diameter	Length	Straight to steel Length after weld	HT	HD
BSEN ISO 13918	13 mm	80 mm 105 mm 130 mm 155 mm 180 mm 205 mm	75 mm 100 mm 125 mm 150 mm 175 mm 200 mm	8 mm 8 mm 8 mm 8 mm 8 mm 8 mm	25 mm 25 mm 25 mm 25 mm 25 mm 25 mm
BSEN ISO 13918	16 mm	80 mm 105 mm 130 mm 155 mm 180 mm 205 mm	75 mm 100 mm 125 mm 150 mm 175 mm 200 mm	8 mm 8 mm 8 mm 8 mm 8 mm 8 mm	32 mm 32 mm 32 mm 32 mm 32 mm 32 mm
BS 5400 & BS EN ISO 13918	19 mm	80 mm 105 mm 130 mm 155 mm 180 mm 205 mm	75 mm 100 mm 125 mm 150 mm 175 mm 200 mm	10 mm 10 mm 10 mm 10 mm 10 mm 10 mm	32 mm 32 mm 32 mm 32 mm 32 mm 32 mm
BS 5400 & BS EN ISO 13918	22 mm	105 mm 130 mm 155 mm 180 mm 205 mm	100 mm 125 mm 150 mm 175 mm 200 mm	10 mm 10 mm 10 mm 10 mm 10 mm	35 mm 35 mm 35 mm 35 mm 35 mm
BS 5400 & BS EN ISO 13918	25 mm	105 mm 130 mm 155 mm 180 mm 205 mm	100 mm 125 mm 150 mm 175 mm 200 mm	12.7 mm 12.7 mm 12.7 mm 12.7 mm 12.7 mm	41 mm 41 mm 41 mm 41 mm 41 mm

Technical Specifications 01

Tensile Test BS EN 10002-1:2001	Yield Strength MIN	Tensile Strength MIN	Elognation MIN
Specification BS EN ISO 13918:1998	350	450	15%
Specification BS 5400	385	495	15%

Company Details

Company Profile
Metaforge Engineering India Pvt. Ltd. has evolved as a reputed Industrial Products, Manufacturer, Exporter and Supplier. Based in Nashik, Maharashtra, the company started its operations in the year 1996. The CEO of the company, Mr. Prajakt Mehta, has been the frontrunner of the company's persistent success in the industry. We are also the proud recipient of the Technology Excellence Award by ACMA (Automotive Components Manufacturer's Association) in 2010.
Infrastructure
The company is backed by state-of-the-art infrastructure comprising of cutting-edge production facilities at the manufacturing unit spread over an area over a large area. The unit is equipped with latest machinery, testing facilities which are considered as inevitable components of the infrastructural base of the company. We use urbane CAD (Computer-Aided Design) for designing the varied Industrial Products. Also in a bid to meet the customers requirement we have sophisticated customized production facility.
Quality Assurance
Quality is of utmost significance for the company. All the Industrial Products provided by us are designed in conformity with global norms and standards of quality. The products undergo rigorous quality tests at the production unit which facilitates the cross-checking of goods before their final delivery.
Testing Equipment For
Hardness
Surface Finish
Plating
Various gauges for dimensions
Pneumatic gauge for diameter
Network
The company has nurtured a strong business network for the past one decade, distributing the Industrial Products to the nook and corner of India, US, England, Germany, Europe, Russia, etc. The existence of the business association has supported in traversing the remotest part of the market by means of judicious and adroit shipment of the Industrial Products.
