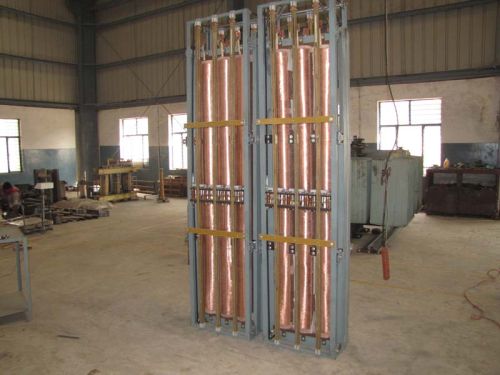

Contact SupplierWe offer L.T. Automatic Voltage Stabilizer. Electricity is the heart beat of any industryoffice and Transformer is the heart of the Company but today scenario hardly any industry receive HEALTHY ELECTRIC SUPPLY (Constant Voltage) due to long transmission line, imbalance between supply & demand of power & poor infrastructure. Higher & Lower voltages above rated voltage adversely affect the life of the equipment and consume more power thus increases the burden on the balance sheet of the company so to solve we have automatic voltage stabilizer, l .t. Voltage stabilizer. Generally 90 % of the industrial load is of motors and the higher current effects the Electric motors (particularly smaller capacity motors up to 7.5 H.P.) in three ways
Higher current produces higher losses in electrical motors which causes premature failure of winding.
These higher losses of electric motors also increase the losses of cables, switches, transformers & other associated equipments.
For smooth continuous operation of motors, over load relays are usually set at 20% higher setting
With the installation of the stabilizer and maintaining 390400 volts, the motor will operate smoothly drawing 15 - 20% lesser current and correspondingly the relay setting can be reduced by 15 - 20%. In case single phasing occurs, the relay will trip in 40 - 50 seconds. The motors can withstand the high current for this period and will be safe. Also, the relays, contactors, switchgears, etc. Incorporated with the motor will be safe. L.T. AVR being easy to handle are installed in all the running units, units having L.T. Connections, units having small H.T. Connections. These can be manufactured for Balance Input Voltage and Unbalanced load or Unbalanced Voltage and unbalanced load
Technical Specifications
We provide the wide range & model of the servo voltage controller according to the customer requirement.
Standard Input Voltage Ranges of servo voltage stabilizer are under
Input Voltage 360-450 V 350-460 V 340-460 V 320-460 300-460V
Efficiency (as Calculated) 99.6% 99.5% 99.35% 99.0% 98.7%
Output Voltage 400 V± 1% , 3 Phase, 50 Hz
Cooling ONAN
Type Indoor Outdoor
Temp Rise (max) 35 º C above ambient
Mounting On Uni-Directional Wheel
Wave form distortion Nil
Response Time 10 ms
Duty Cycle 100 % Continuous
Note : Other voltage range & special feature are also provided according to the site requirement.
By installing the RELIABLE�S Automatic Voltage Controller with Rolling Contact Mechanism Technology get the following advantage.
Advantages
5-10% savings on power bills & up to 30% on lighting load.
Up to 60% reduction in break down of electrical equipments.
80% Depreciation as per Income Tax Act.
Attractive Pay - back period of 6-12 months, owing to its high efficiency (-99.5% in avg, running conditions).
Uniform quality of end product & Improved Productivity of the plant.
Improvement in Power Factor by 10-15%.
Technical Advantages of RELIABLE�S make Automatic Voltage Controller (AVC)
Low Replacement Cost
Undistorted output characteristics ie. No wave from distortion
Moving parts on L.T. Side and it�s mass is extremely low, only few Ib-inch torque
Energy savings
High efficiency (about 99%) and minimum no-load losses ± Simplicity and Flexibility of design
On load stepless Voltage variation
Long service life
Regulating coils are wound with rectangular conductors on their edge, thus giving high mechanical strength compared to other designs
TOP
Applications of Automatic Voltage Regulators
Pharmaceutical Units
Cold Storages
Rolling Mills
Textile Mills
Paper Mills
Tube Mills
Rice Sheller
Rubber Industries
Food Processing Units
Oil & Vanaspati Plants
Footwear & Leather Units
Tea Gardens
Distilleries & Beverages
Hospitals & Nursing Home
Clubs
Hotels
High Rise Buildings
Furnace Transformers
Test Rooms
Glass Industries
Research Stations
Chemical Industries
