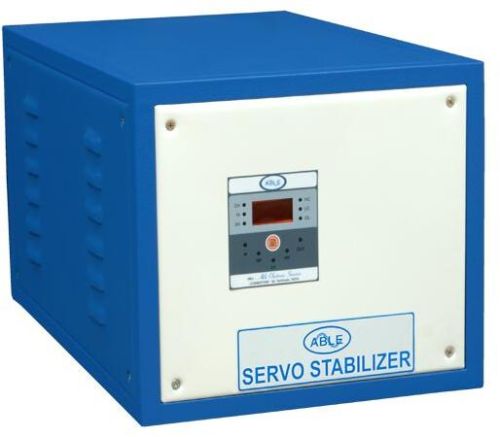

Servo Stabilizers

Listing ID #4244860

Get Latest Price

Capacity2 KVA - 25 KVA Air Cooled/2 KVA - 25 KVA Oil Cooled
Type of CoolingOil / Air
Output waveformTure Reproduction Of Input
Correction Rate15V / 20V / 35V / Sec
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Capacity 2 KVA - 25 KVA Air Cooled/2 KVA - 25 KVA Oil Cooled
Output waveform Ture Reproduction Of Input
System Construction As Per IS : 9815-1994
Supply Frequency 50HZ+5%
Correction Rate 15V / 20V / 35V / Sec
Servo motor drive AC. Synchronous stepper motor
Output Regulations +/- 1% (No Load to Full Load)
Type of Cooling Oil / Air
Overload Capacity 120% Maximum
Ambient Teemperature 45"C Max, Relative Humidity upto 90%
Output Voltage 230V AC adjustable between 200V-240V
System & Connection P,N,E
Protection Over/Under Voltage for Input & Output side, ShortCircult, Overload, Fuse Protection for Motor & Input
Mode of System Fully automatic
Input/Output Connection Up to 3 KVA Plug & Top Above 3 KVA Input Output Terminal
Output Control Relay/Contactor to Auto on (3 Sec to 3 Min).
Metering 3-7 Segment Leds Display for Input/ Output Voltage Load Current, Over Load Setting, Snaitivity, High/Low cut of voltage, Supply Frequency
Efficiency More than 98%
Input Range 120,140,170,200-270
Insulation Class "B","F","H"
LEDs Indication Input On, Output On, Output Cut Off, Output Low Cut Off, Output High Cut Off, Over Load,
Specification Single Phase

Salient Features

Special designs of Transfomer to minimize losses (negligible no load current). More Than 98% effcietly
3-7 Segment LEDs Display For Input /output Voltage,Current,Frequency
Bult-in spike and surge protector
All fuctions and parameters are fully software programmable for constant output voltage even with distorted Input from DG set
Bult- in Protection Against Under/Over Voltage (Input/Ouput),Short circuit
Sesing circuit is isolated from input
All electronic assemblies tested on full load for 48 hours to minimize failures
Higher Overload capabilities for high starting and regenerating currents repeated frequently in CNC / Textile machines
Auto and manual operation facility
No hunting, No oscillation, No noise generations
All components sourced from reputed manufactures
Rugged AC synchronise motor with instant Stop / Start Characteristies
No effect of power factor
In built By-pass Switch upto 15 KVA
