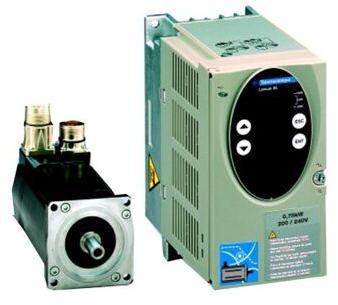

Lexium 05 Servo Drives & Motors

The Schneider Lexium 05 offer integrates functions and components that are usually external, this saves space and easy to integrate the servo drive into enclosure or machines.

The Lexium 05 offer can also be used with Lexium Controllers. This combination constitutes a simple, cost-effective solution that offers the exact level of performance for compact or modularmachines requiring axis synchronization.

Lexium 05 Servo Drives LXM 05 Ratings:

• 200-240V single phase, 0.4 to 2.5kw
• 200-240V single phase, 0.4 to 2.5kw
• 200-240V single phase, 0.4 to 2.5kw

Servo Motors:

• BRH Servo Motors
• BSH Servo Motors
• Nominal Torque: 0.41 to 36 Nm
• Nominal Speed: 1500 to 6000 rpm

Key Features:

• EMC filter incorporated
• LXM 05A and LXM 05B servo incorporated with safety standard IEC/EN 61508 SIL and IEC/EN 61800-5-2
• Breaking resistor integrated as standard
• Simply Start Menu
• Automatic Motor identification
• Auto Tuning Functions.

Control & Interface Features:

• Point to Point mode
• Motion sequence mode
• Electronic gear mode (pulse control)
• Instantaneous speed control
• Current Control

Applications:

1. Material Handling,
2. Printing & Packaging Applications,
3. Winding & Unwinding,
4. Small Machine Tools & Testing Machines,
5. Automated Conveyors.
