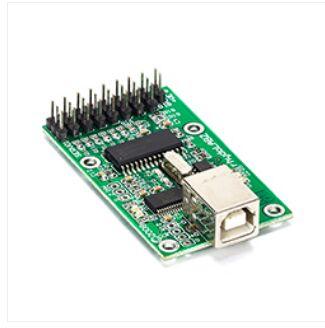

Servo Controller

Listing ID #3435215

The "USB Servo Controller with ADC" from Rhydolabz is a very compact solution for controlling up to eight RC servos from a PC . Each servo speed and range can be controlled independently. The user could control the servomotors by sending the desired command through USB from PC. Once connected to PC module will enumerate as Virtual COM Port . So any Program that can access RS232 can use to control this module. Servo Controller supports two protocols Mini SSCII and RHYDO-SSC protocol. The built in 2 ADC Port can be used for measuring any analog voltage ( ie. 2 Sensor values) and the other ADC channel is permanently connected to measure Servo Voltage. With appropriate command from host the module will do ADC conversion for the selected channel and send out the result via USB. This feature is extremely useful for monitoring any sensor value while controlling the servo and to detect the battery low condition.
Features:
Compact High Quality Two layer PTH PCB
Professional EMIRFI Complaint PCB Layout Design for Noise Reduction
Support Mini SSII and RHYDO-SSC Protocol
3 Channel ADC measurement using command
Servo voltage measurement using command
Onboard EEPROM to save Configuration Parameters
Support USB 2
On Board Status LED Indicator
Can set Neutral Point for each servo
On Board EEPROM
Mini SSII Mode in default and ready to use .
Specifications:
Number of servo ports: 8 Nos
Pulse Width Range: 0.25 to 2.75ms
Resolution: (~0.05 degree)
Supply voltage: 5 -16V
Baud Rate: 9600-115200
Current consumption: 5 mA (average)
