Serum inspissator - Laboratory Equipment

Listing ID #3981210

Inspissator is built of rust-proof stainless steel sheet.
Inside chamber, body and water bath made of stainless steel.
Inside chamber: 25” (width) x 21” (depth) x 32” (height).
Outside body: 29” x 25” x 52”. With heavy duty roller wheels.

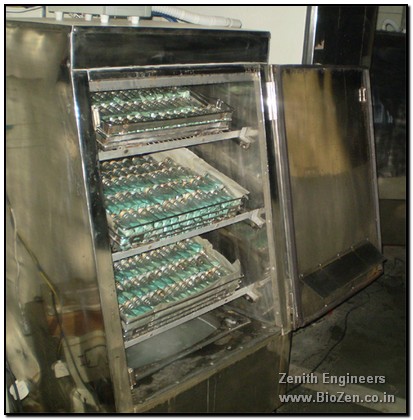

Inside the inspissator three stainless steel wired trays are provided to hold media bottles. These trays are removable from main unit for easy loading of media bottles. Trays are positioned at an angle of 20 degree approx. to provide slope to media.
Inspissating capacity of the inspissator for 3” x 1” (approx. size) of McCartney media bottles is about 450 bottles in three trays with single layer of bottles in each tray. Capacity can be increased to 600 by loading more bottles in each tray in two-three layers. Bottles are at angle of about 20 degree.
Each inspissator has two water heaters: 1.5 kW each (total 3 kW) running at 220VAC, 50Hz.
Two spare heaters are additionally provided for emergency use in case of failure of one of the working heaters during the working of the inspissator.
Temperature range of the serum inspissator is from 5 C above ambient temperature to 95 C. Temperature is settable by the user. Accuracy of inner temperature is better than 2 C. Least count of controller is 1 C. Sensor used is Pt100.

Inspissator is built of rust-proof stainless steel sheet. Outer body and tray are made of stainless steel. Tray size: 31” x 24” (80x60cm). Outer body: 41” x 26” x 16” (104x65x40cm)

In the inspissator a single tray of stainless steel is immersed in water such that the water just touches the bottom of the tray.
The tray has a set of slopes to provide an angle of 8-10 degree to the media containers. Water temperature is maintained through a heater and stirrer.
The tray also heats up to the water temperature and temperature uniformity is maintained in the water, tray and media containers. The total heat up time is less than 2.5 hours.
For user and operation safety, we provide fixed cut-out fuse and miniature circuit breaker at the back of the controller unit of the inspissator.
The controller is digital, with an LED/LCD display to indicate set and actual temperature. User input is taken through a dial and button.
Resolution is 0.1C, uniformity is better than 0.5C and working temperature is 85C.
Temperature range for the inspissator controller is from 0C to 100C. The controller is a composite unit of 1.5kW heater, controller, sensor and stirrer. It is easily removable for servicing.
We also provide spare heaters along with the serum inspissator for emergency use in case of failure of the working heater during usage.
A constant water level setup ensures that the heaters never run dry and that evaporation losses are compensated. Tank capacity is about 50 litres
