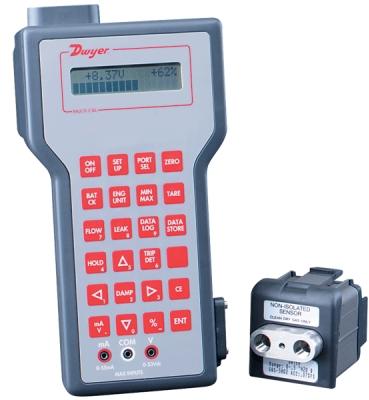

Series MC Multi-Cal Pressure Calibrator

Listing ID #3218130

Series MC Portable Multi-Cal Pressure Calibrator performs a wide variety of simple and complex pressure based measurement, test, and calibration operations. Modular sensor design allows user to select pressure measurement range for application flexibility. Calibrator can accommodate up to two interchangeable pressure modules (sold separately below) in any combination of range or accuracy.
Simultaneously display two separate measurements on the two line, alphanumeric display. Readings can be displayed in a choice of seven preprogrammed engineering units or any single user-defined unit. Calibrator features minmax recall, hilo alarm, percentage of full scale pressure readings, mAvoltage measurement, leak rate and pressure decay measurement, switch testing capabilities, including trip point and dead band, and velocityvolume flow rates.
Quickly document calibration procedures using the data logging feature which stores up to 384 sets of pressure and timedate stamped measurements. Easily upload stored data to an IBM compatible computer via the RS232 port. Calibrators and modules include certification to NIST traceability - ideal as a secondary standard for calibrating pressure equipment.
Multi-Cal Pressure Calibrator includes utility software, test leads, protection module, adjustable had strap, AC adapter, batteries, instruction manual, and hard carrying case.
Multi-Cal Pressure Modules are interchangeable and available in a wide selection of pressure ranges and accuracies. Handheld calibrator accepts up to two pressure modules. Modules include NIST calibration certification.
