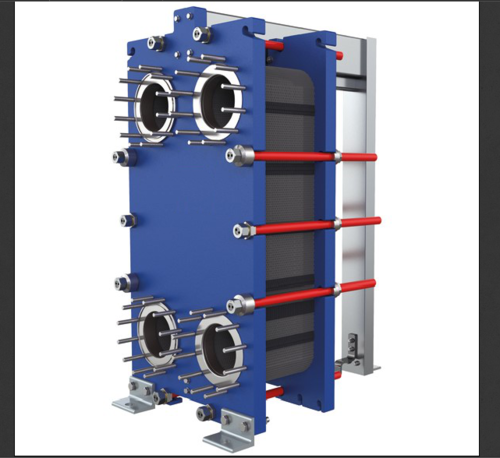

Semi Welded Heat Exchangers is particularly suitable for ammonia related applications. These exchangers are easy to modify heat transfer area for altered capacities. Further, these exchangers can be also optimized with air liquid coolers in indirect cooling systems.
| Plate Type | Max Operating Pressure | Max Heat Transfer Surface | Total Dead weight | Max. Volume Per Side |
| TL | Bar | M2 | KG | DM |
| 90 | -1 to 25 | 33 | 120-600 | 36 |
| 150 | -1 to 25 | 53 | 160-830 | 57 |
| 200 | -1 to 25 | 70 | 215-1100 | 190 |
| 250 | -1 to 25 | 82 | 510-1820 | 120 |
| 400 | -1 to 25 | 115 | 390-2100 | 230 |
| 500 | -1 to 25 | 280 | 690-4160 | 370 |
| 650 | -1 to 25 | 300 | 700-4700 | 470 |
| 850 | -1 to 25 | 500 | 1000-7000 | 700 |
| 1100 | -1 to 25 | 661 | 1900-9500 | 1125 |
| 1500 | -1 to 25 | 750 | 2400-11780 | 1505 |
