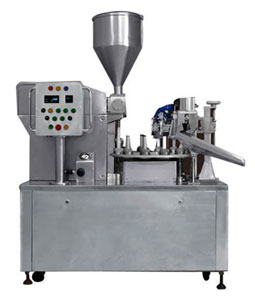

Semi Automatic Tube Filling Machine

Listing ID #3793922

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

For medium speed compact rotary single head type lami/plastic & aluminum tube filling, sealing, batch coding and trimming machine. To fill tooth paste. 5 Gms. To 150 gms. Output 30 to 40 tubes per....

View More Details

Send Enquiry

Product Details

TECHNICAL SPECIFICATION with SALIENT FEATURES: (RAYALMAX-L35)

The proposed GMP MODEL, ROYALMAX-L35 Compact rotary Medium Speed Semi Automatic Lami/Plastic tubes filling & Sealing machine. Capable to fills from 5 grm. To 250 grm. All Contact Part's will be SS 316.
Filling System -Positive Suction & Displacement. Attached Pneumatic Blow Tail Cut-off with Control System.
NO TUBE - NO FILL Device. And Bottom up Filling System. Filling Accuracy +/ - 0.1%.
Tube Sizes max. Length & Diameter: 10 to 50 mm dia./ Length: 40 to 220 mm.
Filling Speed 30 to 40 tubes per min.
12 Nos.Tube holding Cup SS-304. And SS Spring Loaded Nylon Holders One Tube Size.
Indexing System Geneva Mechanism.
Syringe Pump Single Head Type Insert for Filling (5 Gms. to 30 Gms.) (30 Gms. to 100 Gms.) (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order
Jacketed Hopper Double Head Type of Capacity of 40 liters. Temparetcher Controller With 3 KW SS Tubular Heater. Belt Less Stirrer Device with augur to keep the product in Continuous homogeneous condition. Geared Motor 0.5 HP, RPM-40 REMI make. With Label Sensor and controller.
Feeding the empty tubes manually, and filling, sealing, Coding and Tube Ejector automatically.
Lami / plastic Tube heating device Activate on Leister Model Type 3000 Hot Air Tool 8D1 Swiss Make one set. With Hot air Tool adopter Jacketed SS-304, one set. And tube-heating adopter cooling ring centers the tube so That heating is uniform around the tube. Blower: 0.5 HP. (MINI VAC Make) one set.
Lami / plastic Tube Sealing Device Activate on Pneumatics. In sealing & coding wherein the tube is pressed & sealed and then coded with metal stereos coding letter punch (female 0 to 9, one set).
Machine body Construction Mild Steel 50mm Sq.Box type andÂ Machine bash plate 19mm heavy duty fabricated, with Epoxy Powder Coated And all Safty Cover18 gauge SS 304.
Electronic Digital filled Tube Production Counter.
Overload Clutch for Centering and Micro Switch Cut-Off System.
Main Motor 1 Hp, Make Remi. And Gear Box-30 Ratio Make Elecon. With Separate Drive System.
Machine Dimensions: (Length 1460 mm. x Width 930 mm. x Height 2450 mm.)
Machine Weight: 425 Kgs.
