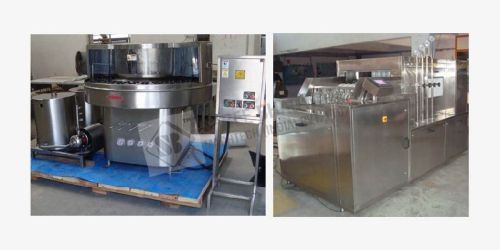

Semi Automatic Rotary machine

Listing ID #3829258

The Bhagwati Rotary Bottle washing Machine is compact and highly efficient machine with elegant look. This multi functional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the Rotary principle with “GENEVA” mechanism and requires manual loading and unloading of bottles.

‘Bhagwati Linear Bottle Washing Machine is used for washing of Bottles and finds wide application in Pharmaceuticals Industries. The automatic loading arrangement facilities loading of Bottles on to SS wire mesh conveyor through feed conveyor or Bottles are pushed manually from feed table. This saves manpower as Bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading Bottle continues on to turn table (Optional).

The bottles are manual loaded and unload on rotating platform and are cleaned in series of operations. The bottles are hold in bottle holders that are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.

Bottles will be pushed from in feed tray and then move on wire woven conveyor belt, which align the Bottle in correct position, to enter in to the carrier pocket with help of oscillating guide rails. Oscillating arm deliver the Bottle inside pocket in mouth down position over spraying nozzles. Multi jet sprayers fixed at the top cause the total external and internal surface to be washed. To avoid any possible cross contamination between two different waters. Each washing station is provided with an independent circuit. Carrier pocket is moving with indexing motion.

When the baskets have completed their motion the needles are lifted. They penetrate the Bottles, spraying jets of water or compressed air then return down. The baskets movement then advances by one station. Each station of Bottles passes through the washing cycles selected.

The duly washed Bottles then delivered to the out feed tray with neck opening upward and then automatically re ordered to a drying and sterilizing tunnel with back pressure.
