Semi Automatic Pneumatically Operated Vacuum Pack

Listing ID #3793902

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Semi-Automatic Pneumatically Operated vacuum pack & sealing machine :-MODEL PVPN 600 H Is use to pack and seal product in pre-formed pouches .Aluminum bags made out of heat seal able laminated....

View More Details

Send Enquiry

Product Details

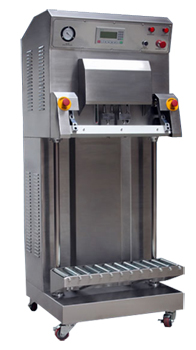

Semi-Automatic Pneumatically Operated vacuum pack & sealing machine :-MODEL PVPN 600 H Is use to pack and seal product in pre-formed pouches .Aluminum bags made out of heat seal able laminated film to enhance the self life of product.
Material: - nylon bags bags of 25 ltrs etc.

Features:

1 bag /min
Pouch Dimension: 1000 MM X 800 MM
Compressor Air Required 30 cfm@ 6 Bar. (Exartnal )
Power Supply: 220 V AC, Single Phase, 50 Hz, 4 KW.
GMP and Fully Flamfroop Model.

Dimension: L: 1000 Mm, W 800 Mm. H: 1200 mm.
Machine Net Weight: 150-200 Kg. (approx.
You’re following details on PP bag size and bag weight at 25 kg.
Aluminum bag size – Length – 15 INCH Aluminum bag size – Width–25 INCH
Speed of Bagging per minute – 1 Bag (Existing system – picture attached)
Inner bag (inside Aluminum bag)- Aluminum thin bag

Speed Of The Machine Depends On:

Size of the pouch
Degree of vacuum required
Packing material
Type of product
Operators efficiency
External Vacuum Packaging Machine With complete functions!
It has 2 functioning pattern can be choosing: 1. only do process of sealing. 2. Vacuum-pumping and sealing. Without limitation caused by the size of vacuum chamber, the air extractor packaging machine has very wide application range.
Application (External Vacuum Packaging Machine):
The External Vacuum Packaging Machine has very wide application range.
Technical Characters(External Vacuum Gas filling Packaging Machine):
1. Control System: Analog and Digital controller.
2. Main housing: high strength armor plate with beautiful spray painting, Stainless steel 304 can be customized!
3. Machine owns double nozzles in chamber less design.
4. The Special sizes of sealing bar can be customized!
5. Double Sealing Bar can be customized!
