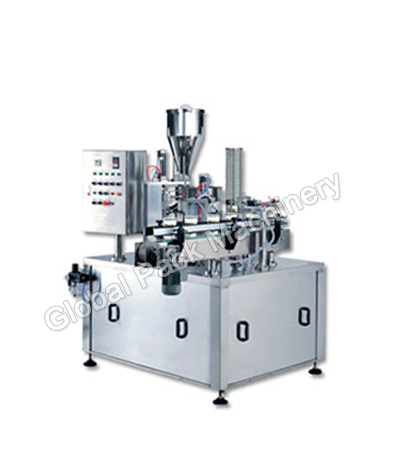

Semi auto Cup filling and sealing machine Rotary machine this machine is designed for packing the plastic cups with Min. Ø 65mm, Max. Ø95mm. Also aluminum folio lids used in this machine must be pre-cutter lids. For following features CFSM-500 machine is appropriate.

Stations of the machine are as follows

• Plastic Cup Dropping Station
• Filling Station
• Aluminum Foil Lid Placing station
• Sealing Station
• Dating Station
• Exit Conveyor

Technical Details

• NO. OF station- 5
• Hopper capacity-21 liter No cup No fill system
• easy Operated Machine
• Power supply- 3 phase, 1 Hp. 1440 rpm 415 volts, 50 Hz.
• Heater power- 230 v - 500 W
• Temp. Controller- 0 to 600C
• Machine capacity - 850 - 900 hr
• MOC -Stainless still 304 make machine
• Vacuum -0.25 inbuilt in machine
• Worm Reduction Gear Box
