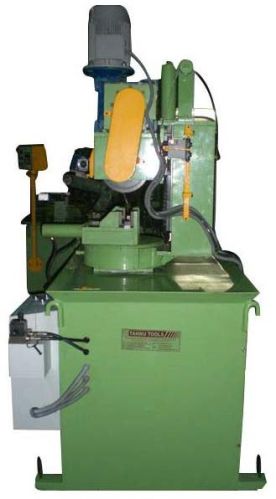

Contact SupplierWe are instrumental in offering high grade Semi Automatic Circular Saw Machine (HCA 110). Our Semi Automatic Circular Saw Machine (HCA 110) is well-designed in torsion free and heavy duty construction. The Semi Automatic Circular Saw Machine (HCA 110) has an inbuilt flood coolant tank and micro mist cooling arrangement. Also, it consists of separate hydraulic power pack with all control valves, gauges and oil level indicator for easy check & maintenance. The saw motor speed of our Semi Automatic Circular Saw Machine (HCA 110) is controlled with step pulley. He Semi Automatic Circular Saw Machine (HCA 110), offered by us, facilitates rapid movement of cutting head (hydro pneumatic).
Features
Machine Dimension | |
Length | 1500 MM |
Width | 1200 MM |
Height | 1850 MM |
Machine Electrical Equipment | |
Supply Voltage | ~3 x 415V, 50Hz, TN-C-S |
Protection Degree | IP 54 |
Driving Engine of the Band Saw | |
Type | ~3 x 415V, 50Hz |
Out Put | 10 HP /7.5 KW |
Hydraulic & Coolant Motor | |
Hydraulic Motor | 2 HP / 1.5 KW |
Coolant Pump | 0.18 HP |
Cutter Blade Dimension & RPM | |
300 MM X 2 MM X 32 MM & 15 – 200 RPM |
Cutting Capacity
ROUND SOLID | ROUND HOLLOW | SQUARE/FLAT | HEX SECTION |
---|---|---|---|
110 MM | 110 MM | 80 MM X 110 MM | 100 MM |
