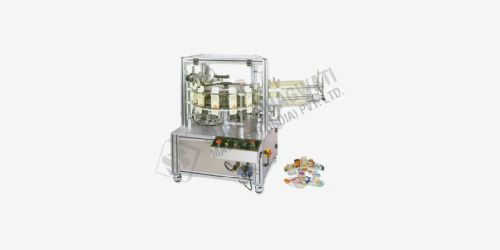

Semi Automatic Cartooning Machine

Listing ID #3829928

  • ModelSBPL SAC 60
  • Power Consumption0.5 HP, 0.37 KW
  •  Min. 100 x 8mm (L*W*H)
  • Dimension750 x 850 x 1200mm (L*W*H)
  • Supply Type Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 9 Years
  • Nature of Business Manufacturer
  • GST No. 24AANCS9768F1ZQ

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Leaflet Paper Thickness 500 gsm / 60 gsm
  • Leaflet Size (Incase of) -4 Manually folded Max. 200 x 60mm (L*W*H)
  • Output Speed 20 to 60 boxes/min. max
  • Box Size Max. 80 x 80 x 200mm (L*W*H)
  •   Min. 15 x 8 x 40mm (L*W*H)
  • Power supply 1 Phase, 230 V, 50 Hz
  •   Min. 100 x 8mm (L*W*H)
  • Working Height 700 +/- 50mm
  • Net Weight 350 Kg.
  • Air Consumption 10 CFM
  • Carton Paper Thickness 250 gsm / 300 gsm
  • Dimension 750 x 850 x 1200mm (L*W*H)
  • Air Supply 9Kg/cm2
  • Model SBPL SAC 60
  • Power Consumption 0.5 HP, 0.37 KW

To increase the production and efficiency, we have specially designed Semi Automatic Cartooning Machines. Our Semi-automatic cartooning machine speeds up the cartooning process in every possible way. The horizontal semi-automatic cartooning machine manufactured by us is ideal for pharmaceuticals. It is also suitable for a wide range of bottles, containers pouches, blister packs, etc. Thus we are famous exporters of it from India..

    Cost effective and efficient in your production environment.



  • This Cartoning machine is suited to handle such items as tubes, blister strips, bottles, vials, ampoules, droppers,inhalers, film rolls, bearings, soaps and many other products falling within the wide range of the machine either individually or in combination.
  • Automatic Cartoning Machine draws the carton from a magazine & opens the carton, Inserts product and closes the carton by tucking in the flaps.
  • This Cartoning machine is suited to handle such items as tubes, blister strips, bottles, vials, ampoules, droppers,inhalers, film rolls, bearings, soaps and many other products falling within the wide range of the machine either individually or in combination.
  • Applications this machine can successfully be used for Cartoning Tubes, Cosmetics, Soaps, Bottles, Ampoules, Vials, Bearings, Blisters or any other rigid products that goes into a unit carton. Multi packs of more than one product in a unit carton can also be handled in this Cartoning Machine.



Leaflet insertion: An automatic insertion of pre-folded leaflets is also possible with an leaflet pre-insertion device.


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Multipack Machinery, One Of The Leading Manufacturer And Exporter Of Ampoule Sticker Labeling Machine, Bottle Sticker Labeling Machine, Front & Back Labeling Machine And Other Pharma Machinery And Parts. We Have Well-Planned And Well-Equipped State Of The Art Advance Manufacturing Facility And Separate Administrative Offices With Worldwide Network Of Agents And Representatives.
  • Nature of Business Manufacturer / Exporter / Supplier
  • Year of Establishment 1998
