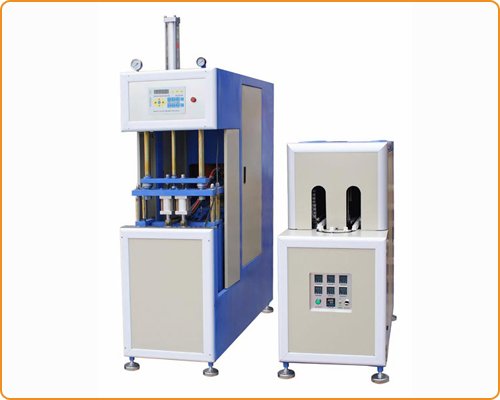

Contact SupplierSemi Automatic PET Stretch Blow Moulding machine to make PET bottles and Jars from PET performs.
Features:
PET bottles and Jars for Mineral Water, Juice, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and Confectioneries
Keywords: PET Stretch, Blow molding machine, Blowing moulding machine,semi-automatic
TYPE | ITEM | UNIT | TECH. DATA | TECH. DATA |
MSB22-III | MSB22-IV | |||
Main Machine |
Max.Volume of Product | L | 2(2-cavity) 3(1-cavity) | 5(2-cavity) 12(1-cavity) |
Output | pcs/h | 450-1200 | 300-1200 | |
Neck Size of Product | mm | 15-80 | 15-120 | |
Useful Area of Mould | mm | 350*450 | 350*450 | |
Mould Thickness | mm | 120-280 | 120-320 | |
Mould Stroke | mm | 80-220 | 80-250 | |
Clamping Force | KN | 50 | 50 | |
Stretching Stroke | mm | 360 | 420 | |
Working Pressure | Mpa | <=1.0 | <=1.0 | |
Blowing Air Pressure | Mpa | <=4.0 | <=4.0 | |
Power of Main Blower | KW | 0.2 | 0.2 | |
Weight of Main Blower | Kg | 800 | 900 | |
Measurement of Main Blower | mm | 1520*580*1780 | 1700*580*1820 | |
Preheater | Power of Preheater | KW | 10 | 12 |
Weight of Preheater | Kg | 450 | 450 | |
Measurement of Preheater | mm | 1450*700*1150 | 1450*700*1150 |
