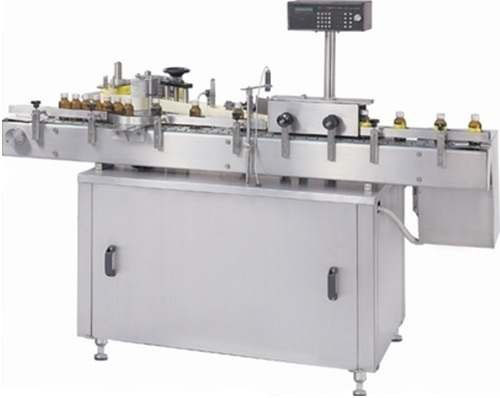

RIDDHI FULLY AUTOMATIC STICKER LABELING MACHINE

Description:                 The Automatic Vertical Sticker Labeling Machine is one of the most user friendly. The machine is used for full/partial wrap around labeling on different size of round container. It is capable of labeling up to 80 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple operation.

Operation:                   The round containers positioned & accurate spacing between two containers by the roller spacing device for wrap-around operation at the operation at the labeling point, an electronic product sensor senses container & release a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.PLC programmed with 4” MMI display.

Electrical:                    Conveyor Motor:-

0.5 HP Three phase motor/ 415 Volts / 50 Hz.

Pressing Device Motor:-

0.25 HP Single phase motor/ 220 Volts / 50 Hz.

Sticker roll Servo motor:-

Machine Dimension:               1835mm (L) x 600mm (W) x 1450 mm (H)

Height of Conveyor:               800 mm to 880 mm adjustable.

Net Weight:                             350 Kg.

Gross Weight:                         600 Kg.

Quantity:                                 01 Nos

Salient Features:                     High Production Speeds.

                                                Stainless steel 304 construction.

Accurate label placement.

Full Security Package including counter.

No change parts requirements.

Very less down time for change over.

Suitable for Glass, Plastic, Pet, Tin, containers.

Utility Requirement:                Electrical Supply:- Three Phase+Neutral+Earthing

                                                Electrical Load:- 1 KW
