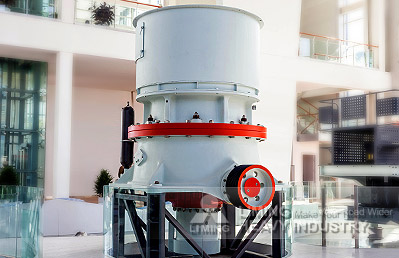

HST Hydraulic Cone Crusher

Listing ID #4353908

Get Latest Price

TypeSecondary Crushing
Input Size38-560MM
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The HST series hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal....

View More Details

Send Enquiry

Product Details

The HST series hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal mine, metallurgical, chemistry, construction, cement, sand and stone production industry. It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on.
Features
1.High efficiency: The hydraulic cone crusher has support on both ends of the spindle, which is able to bear greater crushing force and greater stroke, coupled with the special shape of crushing chamber adapted to laminated principle, the machine has higher crushing efficiency.
2.Large production capacity: The hydraulic cone crusher has the perfect combination of design with crush stroke, crushing speed and crushing chamber shape, which make the machine's moving cone big end diameter in the same circumstances, the output is 35% ~ 60% higher than the old spring cone crusher.
3.High quality stones: The hydraulic cone crusher adopts special crushing chamber and laminated crushing principle, resulting in inter-particle crushing effect, so that the finished product significantly increased the proportion of the cube, flake stone needles reduced and grain is more uniform.
4.Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.
5.Double insurance controlled hydraulic and lubrication system can ensure the machine's overload protection and good bearing lubrication.
6.Easy maintenance: The structure of cone crusher is simple and compact.It has the features of stable performance, not easy to fault and convenient maintenance.
Working Principle
The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.
Processed Materials :
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt,mine ore,quartz,diabase,etc. (For hard stone).

Applications :
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

Model	Cavity	Maximum feed size(mm)	CSS min-max(mm)	Capacity(tph)	Power KW(HP)	Dimension (L×W×H) (mm)	Weight (t)
HST100	S1(Extra Coarse)	240	22-38	85-170	90(125)	1535×1275×2710	9.6
HST100	S2(Medium Coarse)	200	19-32	70-130	90(125)	1535×1275×2710	9.6
HST160	S1(Extra Coarse)	360	25-54	120-345	132(175)	2045×1635×3040	15.5
	S2(Medium Coarse)	300	22-48	105-305
	S3(Coarse)	235	19-48	90-275
HST250	S1(Extra Coarse)	450	35-54	255-605	220(300)	2675×2550×3940	28
	S2(Medium Coarse)	400	29-51	215-515
	S3(Coarse)	300	25-51	190-490
HST315	S1(Extra Coarse)	560	41-76	335-1050	315(400)	3110×2945×4480	43.5
HST315	S2(Medium Coarse)	500	38-70	305-895	315(400)	3110×2945×4480	43.5
Model	Cavity	Maximum feed size(mm)	CSS min-max(mm)	Capacity(tph)	Power KW(HP)	Dimension (L×W×H) (mm)	Weight (t)
HST100	H1(Fine)	135	10-32	45-130	90(125)	1540×1280×2300	7.5
	H2(Medium Fine)	65	8-19	35-80
	H3(Extra Fine)	38	4-16	27-60
HST160	H1(Fine)	185	13-38	66-210	132(175)	2000×1550×2600	10
	H2(Medium Fine)	90	10-32	65-165
	H3(Extra Fine)	50	6-25	48-105
HST250	H1(Fine)	215	16-44	110-395	220(300)	2315×1830×2940	19.5
	H2(Medium Fine)	110	13-38	115-340
	H3(Extra Fine)	70	8-32	90-255
HST315	H1(Fine)	275	16-51	170-665	315(400)	2740×2200×3590	28.5
	H2(Medium Fine)	135	16-38	190-505
	H3(Extra Fine)	65	13-22	205-320
