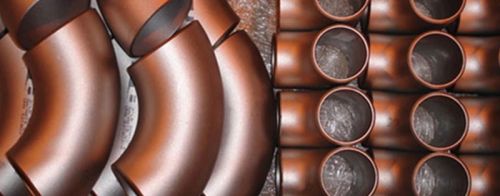

Buttweld Elbow

Listing ID #4315426

Get Latest Price

GradeCu-Ni 70/30 (C71500) / Cu-Ni 90/10 (C70600)
TypeSeamless / ERW / Welded / Fabricated / LSAW Pipes
Size1/2" TO 6' IN OD & NB IN Various SWG & SCH
Dimensions :ASTM, ASME and API
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Grade Cu-Ni 70/30 (C71500) / Cu-Ni 90/10 (C70600)
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Size 1/2" TO 6' IN OD & NB IN Various SWG & SCH
Outer Diameter 4.00 to 22.00 mm
Specifications ASTM / ASME SB 111 / 151 / 466
Dimensions : ASTM, ASME and API

We at Nexus Metal And Alloys are one of the leading manufacturer of the best quality of Cupro Nickel 90/10 & 70/30 Elbow . These Pipe Fittings are fabricated as per the universal standards. These Elbow are intended for wide use in various applications like oil refineries, chemical processing, petrochemical and many other industries.

We acquire quality raw materials to make Cupro Nickel Elbow pipe fittings as per the ASME, EN, ISO and DIN standards. Presently we have developed with high volume of value generation at lessened time with aggressive value concentrating absolutely on consumer loyalty with high class quality with submitted early conveyance at focused cost.

Chemical Properties Of Cupro Nickel Elbow :

Chemical Requirements	C70600	C71500
Copper	Remainder	Remainder
Iron	1.0 to 2.0%	0.4 to 1.0%
Nickel	10 to 11%	30 to 32%
Manganese	0.5 to 1.0%	0.5 to 1.5%
Total Imp.	0.30% max.	0.30% max.

Physical Properties Of Cupro Nickel Elbow :

Condition	T.S. Kg/mm2	EL% Min	T.S. Kg/mm2	EL% Min
Annealed (O)	35	35%	37.5-46	30%
As manufactured (M)	44 min	-	51 min	-
