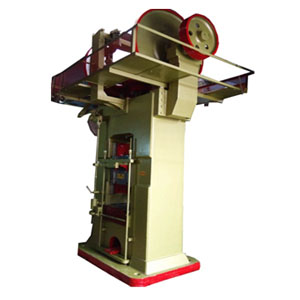

Contact SupplierFriction Screw Press(Down Stroke Screw Press)
HP Singh Machinery Pvt. LTD is a renowned manufacturer, supplier and exporter of Friction screw presses. The Screw is made of high quality alloy Steel and is heat treated to have great hardness at the same time great elasticity. Commonly used in hot forming (forging) and cold coining, stamping, embossing, sizing non-ferrous metal. We have been providing quality machines to our clients at the most reasonable prices.
Technical Specifications | ||||||||||
Ton Cap |
dia of screw |
Base of M/c | Centre dist. Of foundation bolt |
Bed size | Bore size in bed plate | Max.dist.Between table & ram |
stroke of ram |
Bore in Ram | No of stroke per minute |
Power reqd in H.P. |
30 | 90 | 890×510 | 737×355 | 355×355 | 76 | 330 | 178 | 38 | 35 | 3 |
50 | 110 | 1015×686 | 838×560 | 381×406 | 89 | 355 | 203 | 38 | 30 | 5 |
100 | 137 | 1070×813 | 965×635 | 508×483 | 127 | 559 | 330 | 50 | 25 | 10 |
150 | 152 | 1220×915 | 990×711 | 559×508 | 140 | 585 | 355 | 63 | 20 | 15 |
200 | 165 | 1473×940 | 1245×737 | 610×559 | 152 | 610 | 381 | 75 | 15 | 20 |
300 | 203 | 1651×1125 | 1397×940 | 660×635 | 165 | 660 | 406 | 89 | 12 | 25 |
400 | 241 | 1854×1045 | 1600×940 | 736×685 | 178 | 711 | 458 | 101 | 10 | 40/960rpm |
00 | 270 | 2083×1270 | 1778×1016 | 813×762 | 190 | 762 | 762 | 114 | 8 | 50/960rpm |
