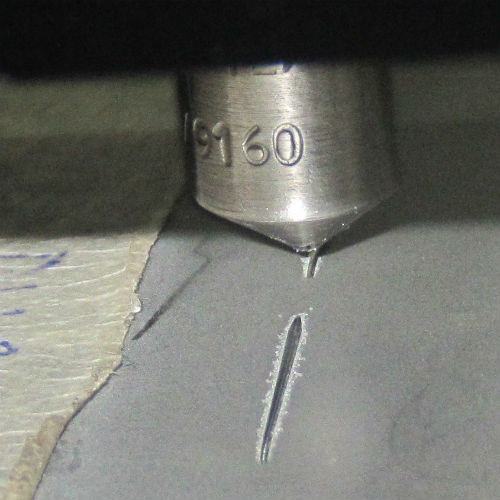

Scratch Tester

Listing ID #4171660

Get Latest Price

Low Load HeadUp to 2 N
Scratch Speed10 mm/sec
X Axis Travel50 mm
High Load HeadUp to 20 N
Y Axis Travel5 mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

There is a growing trend towards the use of modified surfaces for improved performance and life of components. Modifications are invariably in the form of coatings on base material. They are deposited by electroplating, vapor phase deposition, diffusion, thermal spray or welding. Coatings need to be characterized for parameters like scratch resistance, critical load, adhesion and nature of damage under high stress. The Scratch Tester by Ducom facilitates these measurements over a wide range of parameters.

Applications

Critical load of hard and brittle coatings like titanium nitride, ceramics
Determination of working load limit of soft coatings like PTFE and other polymers.
Identification of process parameters of heat treatment for best scratch resistance
Estimation of bond strength at substrate – coating interface
Product development and quality control of surface engineered products

Features

Compact design.
Open platform for ease of use and access when setting up samples.
Computer controlled operation with software license included.
User friendly software interface with CompariView module for comparative viewing of test results.
Variety of options and accessories to extend testing capabilities.

Options

Low Load Head – up to 2 N
High Load Head – up to 20 N
Depth Sensing Module
Acoustic Emission Sensing Module
High Temperature Stage – ambient to 150 Deg C
Advanced Motion Control Module
Integrated Image Acquisition System
Integrated 3D Non Contact Profilometer
