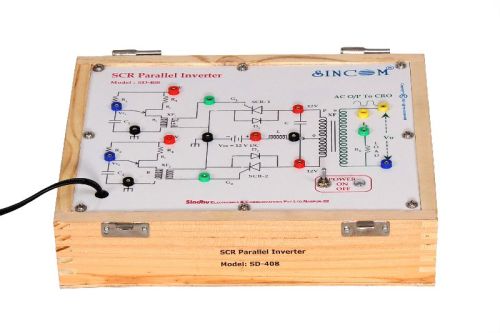

SCR Parallel Inverter SD-408

SCR Parallel Inverter SD-408

Listing ID #3524761

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

This has Built-In DC +12V/500mA Fixed Power supply, Two SCR 2P4M/TYN604 with LC Commutating elements, two anti parallel diodes, step-up transformer and resistive load wired as SCR Parallel inverter,....
View More Details
Send Enquiry

Company Information

SINCOM Sindhu Electronics & Communications Pvt. Ltd. verified-icon
Pratap Nagar, Nagpur, Maharashtra
View Number
  • Member Since 7 Years
  • Nature of Business Retailer
  • GST No. 27AANCS0623H1ZC

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

This has Built-In DC +12V/500mA Fixed Power supply, Two SCR 2P4M/TYN604 with LC Commutating elements, two anti parallel diodes, step-up transformer and resistive load wired as SCR Parallel inverter, two separate synchronized UJT gate triggering circuits, the circuit converts the DC supply into AC sine wave output, facility to observe the AC output with/without resistive load, Ratings- Commutation type - Class-A Force Commutation, I/P  DC Voltage - 12V, AC O/P Voltage - @ 40VP-P,  AC O/P Frequency - 100Hz approx, maximum test points to observe the intermediate circuit effects.
Objectives :

  • To Study  the operation of SCR Parallel Inverter.
  • To study the triggering circuit used for  SCR Parallel Inverter.
  • To Observe & Note the amplitude & frequency of AC O/P.


Accessories Included : Set of Patch Cords, Operating Manual.


Company Details close-icon

SINCOM- Sindhu Electronics & Communications Pvt. Ltd is an ISO 9001:2008 certified Company, Pioneers in the Designing, Manufacturing, Marketing and Exporter of Electronics Educational Trainer Kits & Equipments.
The Trainer kits are useful for Engineering Colleges, Universities, Polytechnics, Science Colleges, Schools, Vocational Training Institutes, Industrial Training Institutes (ITI), Research Centers and many more....
'SINCOM' aims to produce Best Quality Trainer Kits for the Students in Electronics Domain. The Trainers are intended to Learn the Gems of Electronics in a simpler experimental ways with the reduced gap of theoretical and practical concepts.
SINCOM is dedicated to Excellence in Customer Service and Satisfaction with more than 1200 Trainer Kits under the belt covering all the corners of Electronics and Communication.
