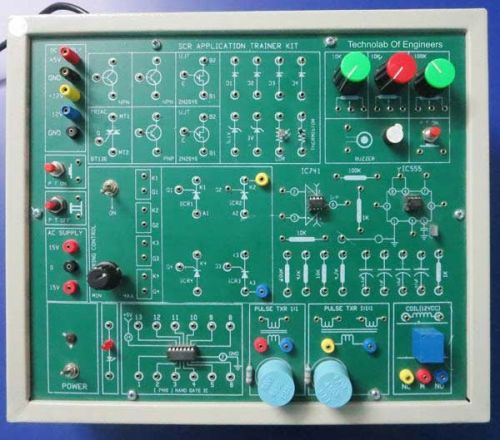

We deal in SCR Application Trainer Kit. The specially designed kit, we offer, are made from premium quality components and latest technology and machinery. They can be used in the study of different application circuits with the help of its different DC power supply and electronic components. This panel is highly acclaimed in the global market for its best performance and accurate results.

Details : SCR application trainer kit helps to study different application circuits. In this kit different Dc power supply and electronic components helps to design different circuits. This control panel is feature packed with the latest advancements. The trainer kit perfectly fabricated with the best grade components and raw materials. The trainer kit is best known for its high performance and accurate results.

Features :

• Different test points provided on panel.
• Built in IC based circuits. Set of patch cords.
• Details description of operation theory and proper guidance.

Experiment :

• To study different application of SCR like SCR as a Switch,
• SCR as a over light detector,
• SCR as a power control etc.

Specifications :

• Power on Switch.
• Fuse Protection.
• DC power supply +5v, +12v,-12v(300mA)
• AC supply 15v-0-15v.
• Set of Resistance.
• Set of Capacitance.
• Set of Inductance.
• Set of variable resistance potentiometer.
• Set of SCR. Set of Diodes.
• Thermistor , LDR, NPN, PNP transistor, TRIAC, UJT, ZENER DIODE etc.
• IC 741, IC 555,Buzzer,Relay,Push to ON, Push to OFF switch.
• Firing control & pulse transformer.
• Accessories - Complete with trainer manuals, e-manuals. Connecting wires , Patch cords.
