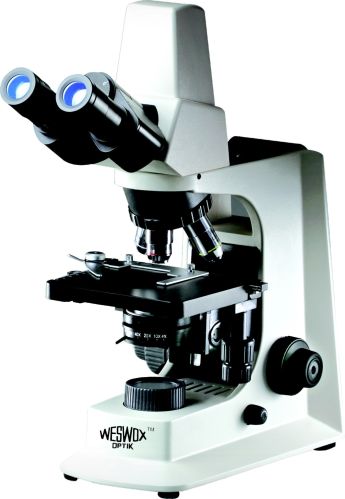

Contact SupplierWe are offering digital biological microscope. Stand single mold sturdy stand with anti rust materials. Extended base for better stability. Observation head siedentopf binocular observation head inclined at 30º rotatable at 360º. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity. Camera built-in head digital board camera with sensor of 3 mega pixel, size ½ inch (microns mt9 too1), resolution : 2048x1536. White balance: automatic & color filter: rgb 24 bit. Eyepiece wide field eyepiece 10x (paired) fov 20mm. Nosepiece reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. Objectives e-plan achromatic 4x e-plan achromatic 10x e-plan achromatic 40x(sl) e-plan achromatic 100x oil(sl). Stage size 125x135mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. Focusing co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1div=0.002mm. Condenser sub stage abbe condenser na 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Flip type front lens condenser. Illumination incorporates 6v20w halogen lamp with adjustable iris diaphragm. Power supply input from 90-240v ac with switch mode power supply. Hinged door for easy replacement of halogen bulb. Packaging contents blue & grey filters styro foam molded pack. Warranty information 2 years parts. 1 year electronics.
