Sauce Filling Machine

Listing ID #3477978

Get Latest Price

Fill Size20 ml TO 1000 ml
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

bhagwati introduces filling machine for filling of all types of liquids. The filling machine comes with 2, 4 , 6 , 8 heads. The filling machine works on the basic principle of volumetric filing....

View More Details

Send Enquiry

Product Details

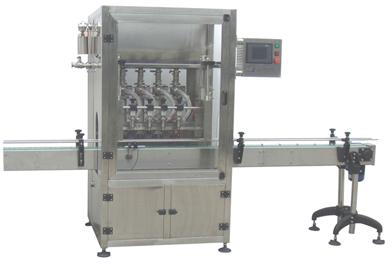

bhagwati introduces filling machine for filling of all types of liquids. The filling machine comes with 2, 4 , 6 , 8 heads. The filling machine works on the basic principle of volumetric filing machine. The machine consists of a syringe, a volume adjustment block, a conveyor , filling nozzles, a no bottle no fill arrangement.

features :

all exposed parts are of s.s. 304, matt finished to avoid any reflection for achieving the most concentration and efficiency of the operator.
co-eccentric nozzles allows very quick and precise setting and making unit compact and manageable.
crafted s.s. Holders, lapped glass as well as s.s. Syringes and piston and precision built valve system for achieving very high accuracy in fill size and drip proof performance. Precise setting and accuracy can be easily adjusted on the machine itself.
no bottle - no stoppers - no filling system.
easy to use control panel for operation.
minimum change over time, from one size of container or fill size to another.
machine height can be adjusted to match with other machines so as to synchronize with each other efficiently.
suitable for oil companies / industries.

technical specification

heads	4 heads, 6 heads, 8 heads
output per hour	8000 - 25,000 bottles pr day. (depending on the nature of liquid and its fill size or volume)
power characteristics	440 v 3 phase 50 hz 4 wire system with ac frequency drive
fill size	20 ml to 1000 ml (with help of extra change parts)
filling accuracy	+0.5%
net weight	600 kgs. Max.(without conveyor) 675 kgs. Max.( with conveyor)
dimension	length (l) 1800 mm width (w) 900 mm height (h) 1500 mm
