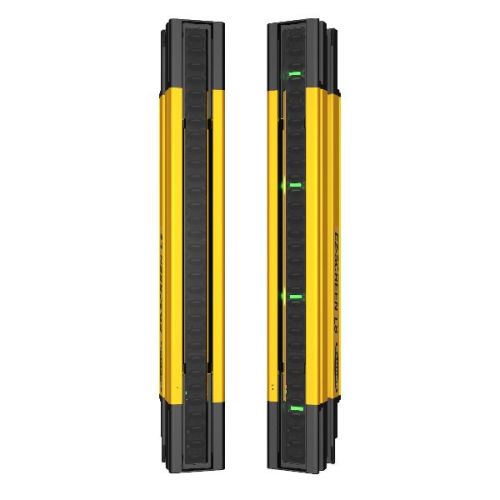

Contact SupplierEZ-SCREEN LS light curtains are intuitive, easy-to-use safety devices used for machine safeguarding. They are built to withstand challenges commonly found in manufacturing and packaging environments.
Three resolutions (detection capability) available: 14 mm, 23 mm, and 40 mm with a range of up to 12 m (39 ft)
Each emitter and receiver features a 5 mm recessed window and is protected against impact by a 3 mm thick aluminum housing and metal end caps
System requires no PC software, DIP switches, or other device for quick, easy configuration
Highly visible alignment indicators and intuitive diagnostics simplify setup, facilitate troubleshooting and minimize system downtime
Dual scan technology makes the sensor highly immune to EMI, RFI, ambient light, weld flash, and strobe light
No blind zone design provides end-to-end sensing to eliminate gaps in detection
Cascade up to four systems of any length, resolution and number of beams
IP65/IP67 rated emitter/receiver pairs exceed OSHA/ANSI control reliability requirements and are certified to Type 4 per IEC 61946, Category 4 PLe per EN ISO13849.1, and SIL3/SILCL3 per IEC 61508/IEC 62061
