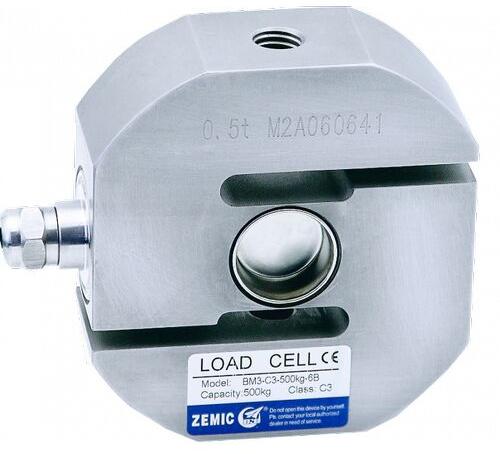

Zemic Stainless Steel S Type Load Cell, For Tensile Testing Machine

Zemic Stainless Steel S Type Load Cell, For Tensile Testing Machine

Get Latest Price

Brand NameZemic
MaterialStainless Steel
ApplicationTensile Testing Machine
Accuracy ClassOIML R60 C3
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

View More Details

Company Information

Appalto Electronics Pvt. Ltd.

Pardesipura, Indore, Madhya Pradesh

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

Product Details

Brand NameZemic
MaterialStainless Steel
ApplicationTensile Testing Machine
Insulation resistance at 50V DC>= 5000 M Ohm
Output Sensitivity(FS)2.0 +/- 0.04 mV/V
Load Cell Intervals (nLC)/Divisions3000
Output Resistance350 +/- 3 Ohm
Accuracy ClassOIML R60 C3
Capacity500 Kg
Input Resistance350 +/- 3 Ohm
Recommended Excitation Voltage5 to 12V DC
Temperature Effect on Output<= +/- 0.011
Cable Length5 Meter
Combined Error<= +/- 0.023
FeaturesHermetically Sealed, High Accuracy & Precision
Maximum Excitation Voltage18V DC
Maximum Safe Overload150% FS
ModelBM3
Compensated Temperature Range-10 to +40 Deg C
Temperature Effect on Zero<= +/- 0.015
Load Cell CertificationsOIML, NTEP
Operating Temperatue Range-35 to +65 Deg C
Ultimate Safe Overload300% FS
Ingress ProtectionIP68
Zero balance+/- 1.5% FS
Creep Error (30 minutes)<= +/- 0.016
