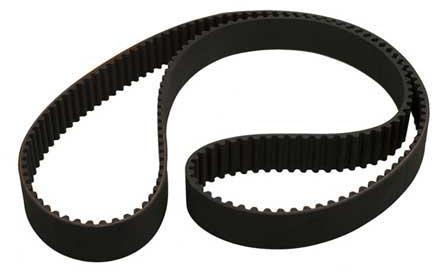

Contact SupplierWe manufacture and supply premium quality Rubber Transmission Belt, that are widely used in different industrial operations in various industries. Our Rubber transmission belts are in huge demand in the market because of
Technical Specifications
Belt Width – 25 to 1200 mmBelt Ply – 2 to 12 PlyBelt Thickness – 3.6/4.6/5.8/7.0/8.4Belt Construction – Square Edge / Round EdgeBelt Colors - Beige, Red, Camel, Grey, Green or as requiredBelt Elongation – 3 to 10 % under load of 1.8 Kg/mmBelt Tolerance – 2.0 to 9.0Tensile Strength – 28/32/38 OzsPly Adhesion - 28/32/38 Ozs
Applications
Indoor transport of semi-finished products wither on roller or sheet metalUsed as bucket lifts for raising small material such as grift, screws, paste etcOil resistant versions are suitable for transporting sheet metal parts, skin & for sorting benchersUsed in agriculture sector for irrigation of fields
Acceptable Tolerance on Belt Width
Normal Belt widthTolerance25 - 63 mm2.0 mm75 - 125 mm3.0140 - 2504.0280 - 5005.0500 - 9007.0900 - 12009.0
Maximum ratings in KV per cm. Width of Belting at 180º arc of contact | ||||
Type of Fabric | Weight of Fabric g/m2 | Pulley Diameters | Belt Speed m/s | Rating per cm Width per ply |
---|---|---|---|---|
28 | 810 | 250mm | 5 | 0.12kw |
32 | 915 | 250mm | 5 | 0.15kw |
34 | 910 | 250mm | 5 | 0.12kw |
Belt speed & Belt plies in mm Maximum Belt Speed ( Meters per second | |||||
No of plies | 10 | 15 | 20 | 25 | 30 |
---|---|---|---|---|---|
3 | 90 | 10 | 112 | 140 | 180 |
4 | 140 | 160 | 180 | 200 | 250 |
5 | 200 | 224 | 250 | 315 | 355 |
6 | 250 | 315 | 355 | 400 | 450 |
