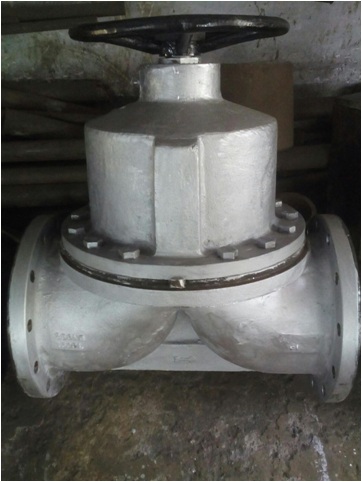

Rubber Lined Diaphragm Valve

Listing ID #3760065

Rubber Lined Diaphragm Valve

• Diaphragm Valves have been designed to handle corrosive/Hazardous media, fibers media as well as water, air, normal fluids, gases and slurries.
• Diaphragm Valves both W.O. (Wear Orifice) type.
• Allines range of superior design and major cost saving benefits, for Secure and full leak tight operation, minimum pressure losses under The most severe circumstances.

Salient Features :-

• The bodies and bonnets are made from high grade cast-iron and is suitable for Various rubber lining compound.
• The bonnet assembly consists of the bonnet shell, spindle, spindle Nut, compressor and handwheel.
• The Diaphragm is moulded with reinforced flexible material and Can be made from a wide range of base materials for different applications.
• Due to versatile design the replacement of a Diaphragm is possible without Disturbing pipeline, which saves valuable time.
• Full rubber on flange faces to avoid gasket need for installation.

Applications :-

Diaphragm Valves are used for on / off or throttling services in chemical, Petrochemicals, Fertilizers, paper & pulp, rayon, power plants, efficient treatment plants, Nuclear and other industries.

Options :-
Ebonite (HRL), EPDM, Hypalone, Viton, Bromo Butyle, Iso ButYle Rubber  Lining available.
