Ethernet Converter

Listing ID #1325779

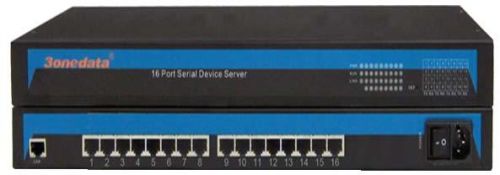

We are offering 16port serial to ethernet converter.
Specification
ethernet port
standard: 10base-t, 100base-tx
protocol: support tcp, udp, apr, icmp and dhcp
signal: rx+, rx-, tx+, tx-
speed: 10100mbps
working: full-duplex and half duplex
working mode: support tcp server and client
transfer distance: 100m
connector: rj45
rs232 port
rs232 port number: 16
rs-232 signal: dcd, rxd, txd, dtr, gnd, dsr, rts, cts
parity bit: none, even, odd, space, mark
data bit: 5bit, 6bit, 7bit, 8bit
stop bit: 1bit, 1.5bit, 2bit
band rate: 300bps�115200bps
loading: point to point
transfer distance: no more than 15m
connector: rj45
protection: class 3 static
led indicator
working statue indicator: run
power (pwr)
ethernet port connection statue (link)
rs232 port transmit data indicator: tx1~tx16
rs232 port receive data indicator: rx1~rx16
power requirements
input voltage: 85~265vacdc
no-load consumption: 1.9w@220vac
full-load consumption: 3.4w@220vac
mechanical
shell: ip30 protection, metal shell
installation: 1u 19� rack mount
weight: 2500g
size(lã�wã�h): 441.6mmã�207.9mmã�44.6mm
environment limits
working temperature: -25~70�
storage temperature: -30~85�
relative humidity: 5%~95%�non-condensing�
standard
emi: en 55022 class a, fcc part 15 subpart b class a
ems: en 55024,
en 61000-4-2 (esd) level 3,
en 61000-4-3 (rs) level 3,
en 61000-4-4 (eft) level 4,
en 61000-4-5 (surge) level 3,
en 61000-4-6 (cs) level 3,
en 61000-4-8,
en 61000-4-11
shock: iec 60068-2-27
free fall: iec 60068-2-32
vibration: iec 60068-2-6
warranty
warranty time: 5 years
certificates
ce, fcc, rohs, ul508(pending)
