Ethernet Converter

Listing ID #1325777

Get Latest Price

TypeRS232
Industrial QualityIp30 Production
Industrial QualityIp30 Production
Brand NameMootek
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Type RS232
Industrial Quality Ip30 Production
Brand Name Mootek
Model Number MT-NP302
Place of Origin Chennai
Industrial Quality Ip30 Production

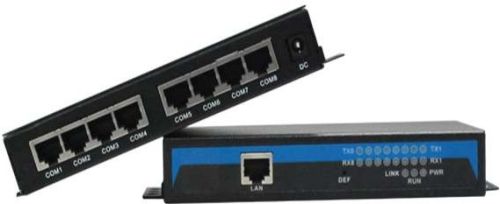

We are offering 8port Rs232 Serial to Ethernet Converter.
Specification
ethernet port
standard: 10base-t, 100base-tx
protocol: support tcp, udp, apr, icmp and dhcp
signal: rx+, rx-, tx+, tx-
speed: 10100mbps
working: full-duplex and half duplex
working mode: support tcp server and client
transfer distance: 100m
connector: rj45
rs232 port
rs232 port number: 8
rs-232 signal: dcd, rxd, txd, dtr, gnd, dsr, rts, cts
parity bit: none, even, odd, space, mark
data bit: 5bit, 6bit, 7bit, 8bit
stop bit: 1bit, 1.5bit, 2bit
band rate: 300bpsï½�115200bps
loading: point to point
transfer distance: no more than 15m
connector: rj45
protection: class 3 static
led indicator
working statue indicator: run
power (pwr)
ethernet port connection statue (link)
rs232 port transmit data indicator: tx1~tx8
rs232 port receive data indicator: rx1~rx8
power requirements
input voltage: 5vdcâ±5%
no-load consumption: 0.825w@5vdc
full-load consumption: 1.320w@5vdc
environment limits
working temperature: -40~85â��
storage temperature: -40~85â��
relative humidity: 5%~95%ï¼�non-condensingï¼�
mechanical
shell: ip30 protection, metal shell
installation: wall mounting
weight: 524g
size (lã�wã�h): 160mmã�95.5mmã�28mm
standard
emi: en 55022 class a, fcc part 15 subpart b class a
ems: en 55024,
en 61000-4-2 (esd) level 3,
en 61000-4-3 (rs) level 3,
en 61000-4-4 (eft) level 4,
en 61000-4-5 (surge) level 3,
en 61000-4-6 (cs) level 3,
en 61000-4-8,
en 61000-4-11
shock: iec 60068-2-27
free fall: iec 60068-2-32
vibration: iec 60068-2-6
warranty
warranty time: 5 years
certificates
ce, fcc, rohs, ul508(pending)
