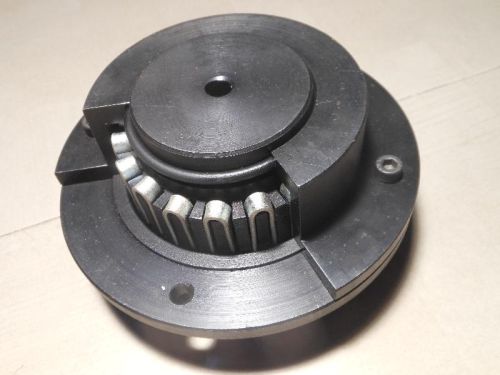

Metal Grid Couplings, Grade : AISI

Listing ID #3090427

1,500 - 6.70 Lakh / Set

Get Latest Price

MOQ 1 Set(s)
ColorBlack
TypeResilient Spring Grid Coupling
MaterialMetal
ShapeRound
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Color Black
Type Resilient Spring Grid Coupling
Material Metal
Shape Round
Grade AISI
Thickness 10-20mm, 20-30mm, 30-40mm, 40-50mm, 50-60mm
Feature Corrosion Proof, Crack Proof, Durable, Excellent Quality, Fine Finished
Application Connecting Shafts And Pipes, Engines, Machinery
Size 1inch, 2inch, 3inch

We have a team of professionals who work in assistance with the clients and guide them with the secure payment procedure. With us, clients can do online and offline transactions as per the convenience. We have high-tech and spacious storage unit that is incorporated with all required amenities vital for a safe storage of the products till the final send off. Supervised by efficient personnel, they ensure zero damage to the items to keep up the standards.

Specifications

SIZE	Torque	Max. RPM	BORE		ØA	ØB	C	G	L	M	Approx Weight Kg
SIZE	Torque	Max. RPM	MIN.	MAX.	ØA	ØB	C	G	L	M	Approx Weight Kg
FGFC - 01	52	5800	10	29	105	43	38	0.8	76.8	53	3
FGFC - 02	150	5000	12	38	120	55	38	0.8	76.8	53	4
FGFC - 03	435	4500	16	42	144	60	45	0.8	90.8	60	5
FGFC - 04	995	3500	16	58	172	85	51	0.8	102.8	60	9
FGFC - 06	1000	3300	16	58	190	84	51	0.8	102.8	80	11
FGFC - 07	1950	3100	16	65	197	95	57	0.8	114.8	80	16
FGFC - 08	2150	2600	25	80	222	115	64	0.8	128.8	80	20
FGFC - 09	6200	2300	25	95	254	140	70	0.8	140.8	81	27
FGFC - 10	9300	2000	25	110	276	160	89	0.8	178.8	81	43
FGFC - 11	9500	1900	38	104	295	153	102	1.6	205.6	129	54
FGFC - 13	13700	1800	50	124	324	185	101.5	1.6	204.6	148	63
FGFC - 14	14100	1600	50	124	336	180	101.5	1.6	204.6	148	72
FGFC - 15	19900	1400	50	148	375	220	114	1.6	229.6	148	104
FGFC - 17	28500	1200	50	170	425	250	127	1.6	255.6	148	149
FGFC - 20	51000	1200	75	155	432	236	140	3.2	283.2	180	225
FGFC - 22	67000	1100	85	170	492	260	152	3.2	308.2	180	310
FGFC - 25	68300	1000	110	190	686	285.7	178	3.2	359.2	210	408
FGFC - 26	68500	1000	135	210	781	324	203	3.2	409.2	210	545
FGFC - 27	90000	900	145	242	876	368	228	6	462	250	875
FGFC - 28	108000	800	155	265	1015	406	228	6	462	285	1570

Graphic Image 0-17

Download Detail File : Click Here

Graphic Image 20-22

Download Detail File : Click Here

Graphic Image 25-28

Download Detail File : Click Here

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

FLEXITECH INDUSTRIES is one of the prominent names engaged in the manufacturing and exporting of high quality couplings such as Flexible Gear Coupling, Pin Bush Coupling, Muff Coupling, Nylon Gear Coupling, Star (jaw) Coupling, Brake Drum Geared Coupling, Brake Drum with Flexible Geared Coupling, tyre coupling, rigid coupling, chain coupling, gear coupling, Grid Coupling, Pulley, sprocket, shaft, gears & worm gear, worm shaft, power transmission component, other precision machine components. As per drawing as per sample.
