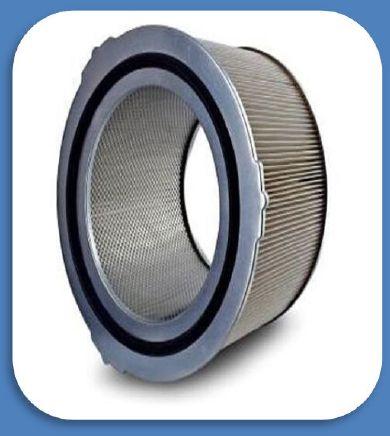

KEL Round Curly Bracket Filter Cartridge

₹ 2,000 - ₹ 3,000 / Piece

MOQ10 Piece
Brand NameKEL
Length500/1000mm long or variable , as per require
ShapeRound
Outside Diameter145 – 150mm
Supply TypeManufacturer, Exporter, Importer
Preferred Buyer Location India ( Except Andhra Pradesh, Gujarat, Madhya Pradesh )

Company Information

View Number

Member Since 17 Years
Nature of Business Retailer
GST No. 24AEGPA4006A1ZL

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ShapeRound
Length500/1000mm long or variable , as per require
Outside Diameter145 – 150mm
Brand NameKEL
Filtration Rating0.96 – 25 micron
Size1.top cap outer :-328mm diameter
Filtration Area1-10 SQM Maximum

Construction :

Air filtration curly bracket filter cartridge has a very high dust loading capacity and optimized flow conditions. It is a replacement filter cartridge for thread cartridges.
The curly bracket filter cartridge can be equipped with any of 100% spun bonded polyester filter media making it suitable for various industries and dust types, including abrasive , toxic and explosive dust.
It is also make GI/SS cages as core inner materials.
Also use the stripes for pleats support.

Features :

Very economical and strong outer cags.
Temperature : ambient
Open pleat spacing
Low consumption of compressed air (for cleaning)
High efficiency due to surface filtration
Reduction in downtime & maintenance
Easy to install & remove , leak proof design

Applications : Pharmaceuticals, Chemicals, Cements, Sugars, Fertilizer, Steel and Power , Powder Coating, Shoats blasting , Metal and Minerals, Paints, Pneumatic conveyer, etc.
