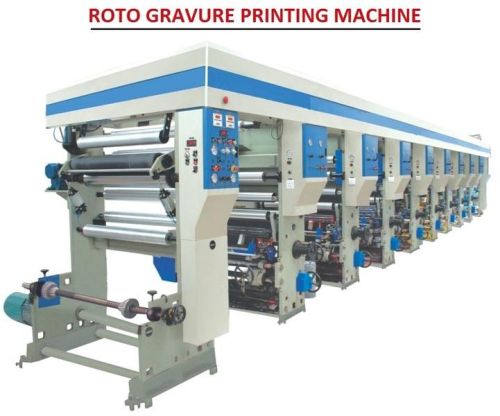

Rotogravure Printing Machine

Listing ID #925866

Rotogravure Printing Machine (Code : SI-ROTO) is widely used in industrial workshops, mechanical engineering and press industry. Our Rotogravure Printing Machine features modular construction machine and each printing station is a complete entity by itself. Therefore, a station or two can always be added even at a later stage provided that the main drive power rating is taken care of right in the beginning. Our Rotogravure Printing Machine is equipped with tension control device and has shafted arrangements, AC motor integrated digital drive, and operating speed is up to 100 - 200 meter per minute. Our Rotogravure Printing Machine ensures hassle-free work performance and longer functional life.
Salient Features :

• The machine is suitable for printing on LDPE, HM, HDPE, PP, aluminum foil, paper, laminates etc.
• Helical gear box assembly duly ground hardened with oil bath lubrication.
• Auto stop mechanism to stop the machine for the break in web, pneumatic shaft
• Perfect registration
• Reverse printing arrangement (printing possibilities : front + back side at the same time)
• Engineered design
• High operational fluency
• Corrosion free

Optional Accessories :

• Web aligner
• Automatic tension control system powder brake with load cells
• Motorized length registration system
• Ink circulation system
• Web video inspection system
• Five drive system

Technical Specifications :

• Available (in colour) : 4,  6,  8 Colour
• Web Width : 26”,  34”,  42”
• Printing Width : 24”,  32”,  40”
• Print Repeat : 14”  to  30”
• Max Reel Dia : 30”
• Printing Speed : 100 – 200 meter per minute
• Power Load : 15 to 40 HP (variable with the machine size)
• Inking system : Ink Tray
• Heating system : Electrical Heaters or Diesel Fired Heating system

  Note :

• Above specifications are as per standards.
• We reserve right to change design / specifications without notice for continuous development.
