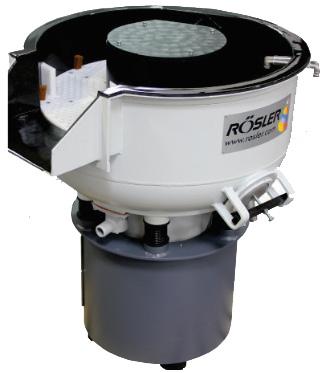

Contact SupplierVibratory Surface Finishing takes place in a work bowl placed on coil springs. The vibratory energy is induced by a special vibratory motor that is mounted in the centre of the work bowl.The vibration creates the typical "relative" movement of media against parts.The continuous feeding of water and compound -also known as soap - supports the finishing process. Frequently rotary vibrators are equipped with an integrated separation flap and screen.This allows separating the finished parts from the media in the machine:Via the separation screen,the parts are transferred to the machine exit or to a post-treatment system, for example, a drier, while the media remains in the machine.
Technical Data | RII00S | RI200S | RI300S | RI400S | RI500S |
Total Volume (L) | 125 | 220 | 320 | 420 | 620 |
External Diameter max. (MM) | 910 | 1200 | 1280 | 1520 | 1695 |
Process Bowl Width (MM) | 210 | 260 | 290 | 355 | 430 |
Overall Length of Processing Channel (MM) | 1970 | 2630 | 2780 | 3300 | 3450 |
Machine Height (MM) | 1105 | 1115 | 1210 | 1240 | 1235 |
Unload Height (MM) | 890 | 890 | 990 | 1010 | 985 |
Height Media Unload Plug (MM) | 660 | 640 | 650 | 675 | 600 |
Lenght x Width (MM) | 710 x 210 | 980 x 260 | 1025 x 300 | 1260 x 360 | 1315 x 430 |
Area (cm.sq) | 1600 | 2600 | 3500 | 4600 | 5800 |
Type | Slide-in-gate | Slide-in-gate | Slide-in-gate, optional : pneumatically activated separation flap | Slide-in-gate, optional : pneumatically activated separation flap | Slide-in-gate, optional : pneumatically activated separation flap |
Drive Power - Connected Load (kW) | 0.75 | 1.5 | 3.0 | 3.0 | 5.0 |
