LVV SERIESÂ UNIQUE FEATURES
|
•
|
A unique design of lubricating system positively feeds minimum quantity of oil to important points. The oil from the exhaust is baffled, collected and returned back to oil chamber. This way not only the intervals between oil top up is prolonged, but also helps to keep the atmosphere in the premises free of oil smoke to some extent. |
|
•
|
Specifically heat treated fibre vanes are used in ACMEVAC pumps in place of steel vanes. The advantages are silent running, and negligible wear on stator, end covers and rotor slots |
|
•
|

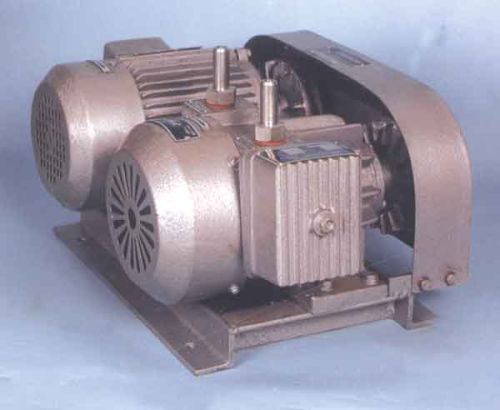

ACMEVAC pumps are driven by V-belt covered with belt guard to give vibration free operation, and are fan cooled. |
|
•
|
The complete unit with motor and base plate is most compact for its capacity and due to its vibration free running is suitable for mounting inside the equipment. |
|
•
|
All the models in LVV series can be modified to suit specific application so that smallest possible pump with minimum power consumption can be offered to the user. |
APPLICATIONS
Â
| • | Pharmaceutical, Chemical & Industrial Machines. |
| • | Filling, Transferring, Holding. |
| • | Conveying, packing, Filtering. |
TECHNICIAL SPECIFICATIONS
| Model | FAD Displacement Lits/Min | Vacuum HG | H.P. Reqd. H.P |
|---|---|---|---|
| LVV 300 | 300 | 26" | 1.0 |
| LVV 500 | 500 | 24" | 2.0 |
| LVV 1000 | 1000 | 24" | 3.0 |
| LVV 1500 | 1500 | 24" | 5.0 |
