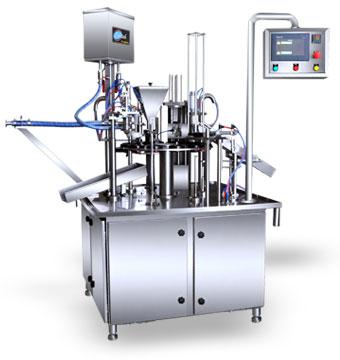

CUP And CONE FILLING MACHINES

Listing ID #3940237

Get Latest Price

TypeRotary, Mechanical electric motor driven (1Hp)
OVERALL DIAMENSIONS2000mm (L) x 1400mm (W) x 2000mm (H)
POWER SUPPLY3 phase 440V.AC. Control circuit 24 VDC
INDEXING SYSTEMCam indexing system with Bonfiglioli geared Motor to have 12 indexing per revolution.
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Type Rotary, Mechanical electric motor driven (1Hp)
POWER CONSUMPTION 0.75 KW
PRESSURE 6 kg/cm2
FILLING SYSTEM Pneumatically time based filling.
CUP DISCHARGE Pneumatically operated dragger system.
INDEXING SYSTEM Cam indexing system with Bonfiglioli geared Motor to have 12 indexing per revolution.
NO. OF STATION Twelve
SYSTEM Pneumatic
PACKING Ice Cream Cup & Cone
FINISH All parts other than SS will be powder coated
MATERIAL OF CONSTRUCTION Aluminum / stainless steel components with SS Steel metal outer body. Product contact parts are In SS 304 quantity material
OVER SYSTEM Provision had made in the machine to handle Different size of cups & cone by repositioning a Few Components and also by replacing the Cone & lid Adopters.
CONTROL SYSTEM PLC based circuit with HMI for the complete Operation & regulation of functions
NEW WEIGHT 600 kg
OVERALL DIAMENSIONS 2000mm (L) x 1400mm (W) x 2000mm (H)
CUP REGULATION SYSTEM Pneumatically operated cup regulation system With vacuum draw.
COMPRESSOR CAPACITY 7.5 HP
LID PLACEMENT Pneumatically controlled lid regulation system With vacuum holding.
Model SUPER C PLUS
CUP SIZE 40ml, 50ml, 80ml, 100ml cup & cone
CUP EJECTION Pneumatically operated cup ejection system.
PRODUCTIVE RATE 3000 cups per hour
DRIVE / OPRATION Mechanical motor driven indexing system with Pneumatically operated devices.
POWER SUPPLY 3 phase 440V.AC. Control circuit 24 VDC

CUP & CONE FILLING MACHINES

FEATURES
	Coldtech has designed and developed a flexible rotary type cup & Cone Filling Machines for Ice Cream
	The machines are very compact and require very less floor space.
	The Machine is to be connected in line with the Continuous Freezer
	The Variable Speed allows arrangement to match the freezer capacity.
	The machine also provides the option to fill the Cones with the use of Change Parts
	The change over from one cup size to another cup size is very easy can be done within few minutes.
	The batch coding is also possible on the conveyor
	The machine is a combination of mechanical movements and some functions having pneumatic operations.
	The use or Hardened cam Profiles offers a Long Life & Accuracy to the machine.
	An user-friendly PLC with TOUCH SCREEN is used to control all the functions and provide the inter locking which means minimum product & material wastage.
	All these features makes the machine most flexible and reliable.
	The machines are suitable for filling of Ice-cream in Small / Big Cup as well as Big / Small Cone.
