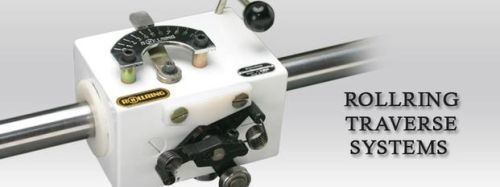

Contact SupplierROLLRING TRAVERSE UNITS are positive drives, which convert the constant speed rotation of the shaft into variable speed, variable stroke,reciprocating motion without changing the direction of shaft rotation.This is a unique method of converting rotary motion into linear reciprocating motion on the principle that contact pressure created between a correctly dimensioned ring and shaft assembly enables significant forces to be transmitted.The rate of advance of the unit on the shaft is directly related to the angle of the contact between the ring and the shaft. The traverse direction reverses instantaneously and automatically.
​Traverse Unit with 3 Bearing       Traverse Unit with Four Bearing
1. HT 1 Â (Shaft 10 mm.) Â Â Â Â 4RR 15 Â ( Shaft15 mm.)Â Â Â Â Â
2. HT 2 Â (Shaft 15 mm.) Â Â Â Â 4RR 20 Â (Shaft 20 mm.)
3. HT 3 Â (Shaft 20 mm.) Â Â Â Â 4RR 30 Â (Shaft 30 mm.)
4. HT 3N (Shaft 30 mm.) Â Â Â Â 4RR 40 Â (Shaft 40 mm.)Â
5. HT 4 Â (Shaft 40 mm.) Â Â Â Â 4RR 50 Â (Shaft 50 mm.)Â
6. HT 5 Â (Shaft 50 mm.) Â Â Â Â 4RR 60 Â (Shaft 60 mm.) Â
7. HT 6 Â (Shaft 60 mm.) Â Â Â Â 4RR 80 Â (Shaft 80 mm.) Â
8. HT 8 Â (Shaft 80 mm.)
