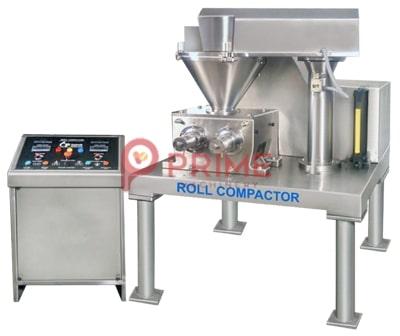

Grey Rectangular Polished Stainless Steel Roll Compactor Machine, Voltage : 220V

Listing ID #6485137

4.50 Lakh - 19.50 Lakh / Piece

Get Latest Price

MOQ 1 Piece
Country of OriginIndia
TypeAutomatic
Warranty1 Year
MaterialStainless Steel
Supply Type Manufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Country of Origin India
Type Automatic
Warranty 1 Year
Material Stainless Steel
Shape Rectangular
Color Grey
Voltage 220V
Finishing Polished

Features :

CPM Roll Compactor CPM -RC 200/50, 200/75 & 200/100 are GMP Models & 200/150, 200/200.
Very compact design available in Plain, Water Jacketed or Flameproof Model.
Screw is driven through ACVF Drive. Safety slipping clutch between gearbox and feed screw.
Rolls drive through twin's shaft gearbox with speed drive unit coupled to it using coupling, which ensures synchronization of the rolls with a steady torque loading.
Pre - den sifter screw comprises of cylindrical or conical shape, which is well polished and made of AISI SS-304 quality material - SS 316 optional.
Compacting rolls sleeves are made out of tool steel, hardened to 55 HRC approximately, and are keyed in to shafts and thus protected against axial slipping by thrust plates and bolts.
The feed screw assembly can be lifted by hand-operated hydraulic pump. This facilitates ease in cleaning.
Scrapper assembly also designed to dismantle for ease of cleaning.
Pre-compression chamber guides the powder without any slippage or leakage.
A separate panel board which consist all controls and indicators of the compactor are permanently built in namely, on/off rolls, on/off feed screw, main switch, and forward/reverse switch, ammeters for rolls and feed screw and emergency stop to avoid short circuit or fire hazard at the time of cleaning with water.
Electrical interlocking between main roll drive and fixed screw drive.Water jacketing arrangement. (optional)
Hydraulic power pack system for Rear Roller. (optional)
AC Variable frequency drive for Rollers. (optional)

Specifications

Models	200/50	200/75	200/100	200/150	300/330
Max. Output (kg/hr) *	20 to 60	30 to 100	100 to 250	100 to 350	100 to 1000
Roll Speed (RPM)	6 to 25	6 to 25	6 to 22	6 to 22	6 to 25
Feed Screw Speed	10 to 60 RPM	10 to 60 RPM	16 to 50 RPM	16 to 50 RPM	10 to 90 RPM
Roll Drive Motor	5 HP	5 HP	7.5 HP	10 HP	30 HP
Feed Screw Drive motor	2 HP	2 HP	3 HP	3 HP	5 HP
Electrical Supply	7 HP, 3 ~, A.C.	7 HP, 3 ~, A.C.	10.5 HP, 3 ~, A.C.	13 HP, 3 ~, A.C.	28 HP, 3 ~, A.C.
