Contact SupplierUsed for automated real device testing -- rigorous, functionality & manual testing on capacitive and resistive touchscreen devices like smartphones, tablets, laptops, multi-touch tv screens, infotainment systems & touch-sensitive industrial hmi panels.

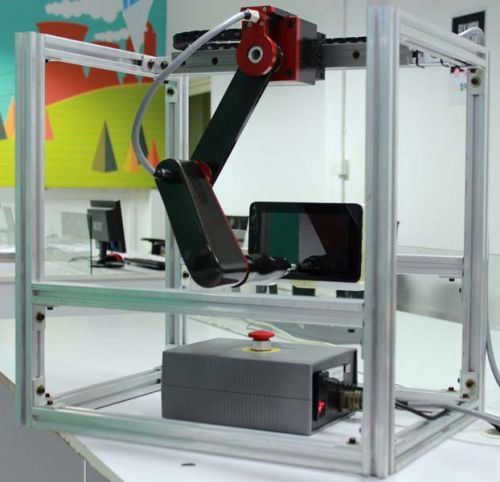

Sr-scara-pro is built to improve the accuracy & efficiency of touch screen testing. It is the world's fastest touchscreen testing robot, upto 800 touches per minute. Can do touch gestures -- single & double tap, long press, swipe & zoom (requires different end effector for zoom).
Vision feedback of the testing routine can be obtained through camera (does not come with base unit)
it can be interfaced to matlab, labview, ros and other software applications.
For further info: www.sastrarobotics.comsolutions
checkout our products and solutions: www.sastrarobotics.com
email: hello@sastrarobotics.com
immediate enquiries: +91 4846 422 422
applications
capacitive touchscreen testing
resistive touchpanel testing
touch enabled hmi panels testing
industrial touch control panels testing
smartphone gestures testing
vision feedback of touch testing
automated real device testing
touchpanel testing
r&d for educational institutions and industries
specifications
design: 3 dof
touch speed: 800-per-minute
payload (mid-range): 0.5 kg
horizontal reach : 350 mm
vertical reach: 30 mm
work area: 332000 sq mm
weight: 3 kg
controller: intel-based pc control box
interface: usb, optional lan , can available
mounting: floor mounting, wall mounting, roof mounting
power input: 230 v, 50 hz ac
software
robot simulation & control software provided, with built in kinematics solvers, trajectory generation & collision avoidance.
Programmable to customer requirements
open source apis in cc++, python, labview, matlab.
Ros interface
simulation models for gazebo, webots, v-rep
