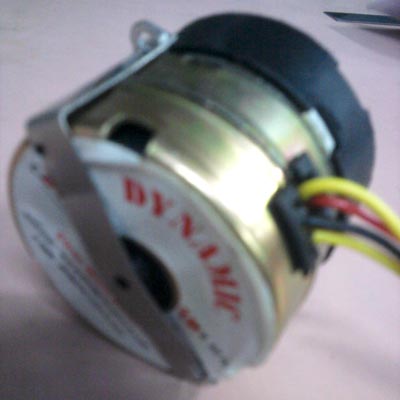

Avail from us, Reversible Synchronous Motor that is manufactured from optimum quality components. These Reversible Synchronous Motors are widely used in various appliances owing to their high performance and superior quality. We are listed as a prime Manufacturer and Supplier of Reversible Synchronous Motor from India.
| Attributes |
|
| Applications |
|
| Motor Type | Reversible synchronous | |
|---|---|---|
| Ambien Temperature operation | oC | 15...+55 |
| Ambien Temperature storage | oC | -20...+100 |
| Thermal Class | oC | 105o |
| Motor Speed | rpm | 500@50hz |
| Life Expectancy | 3 year in concinuous operation | |
| Mounting | any position | |
| Standard motor voltage | V | 12, 24, 48, 110, 220 & 240 (others on request) |
| HVT | 1.5 KV (motor voltage>40V) or 1.5kv (motor voltage<40v): 30sec. | |
| Weight | gm | 140 |
| Rotor stalling | Motor can be stopped when voltage is applied, without being overheated | |
| Rotor shaft | Hardened steel, ground snd polished | |
| Bearings | Sintered bronze, self lubricating | |
| External dimensions | dia 48 X 24 mm |
| Rated Voltage, V | V | 12 | 24 | 48 | 110 | 220 | 240 |
|---|---|---|---|---|---|---|---|
| Operation capacitor (50-60), C | µ F / VAC | 22/20 | 6.8/40 | 1.5/100 | 0.25/200 | 0.068/400 | 0.068/400 |
| Lead colour (V) | Grey | Blue | Brown | White | Yellow | Yellow | |
| Tolerance of voltage | % | -10... | +15 of related voltage | ||||
| Duty cycle | % | 100 | |||||
| Rated Frequency | Hz | 3 year in concinuous operation | 50 | 60 | |||
| Power output at rated voltage | W | 0.77 | 0.87 | ||||
| Speed | rpm | 500 | 600 | ||||
| running torque at rated voltage | gm-cm | 80 | 75 | ||||
| Power consumption at rated voltage | W | 2.1 | 2.2 | ||||
| Detent torque | gm-cm | 30 |
