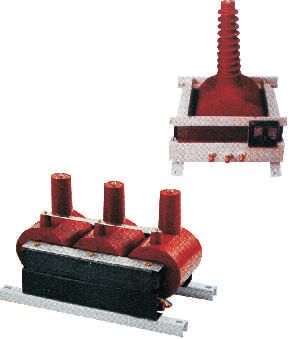

Resin Cast Potential Transformers

Listing ID #4190121

  • Phase2
  • ApplicationMachines, Control Panels, Industry
  • Rated secondary current5A or 1A
  • Special FunctionAlkali, Oil and Other, Salt, Prevent Acid
  • Supply Type Manufacturer, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Exporter
  • GST No. 09AABCM0136D1Z0

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Phase 2
  • Rated frequency 50Hz or 60Hz
  • Rated load ≤30VA
  • Application Machines, Control Panels, Industry
  • Special Function Alkali, Oil and Other, Salt, Prevent Acid
  • Rated secondary current 5A or 1A

The resin cast PTs are normally used fo indoor application inside the panels.The  resign cas PTs cab be used for outdoor application also provided it is enclosed in hermetically sealed metal tank.


Construction Feratures

S No DESCRIPTION
1 PRIMARY TERMINAL
2 BODY
3 SECONDARY TERMINAL
4 PRIMARY NEUTRAL TERMINAL
5 NEUTRAL SHORTING LINK
6 CORE
7 MOUNTING CHANNEL
8 CORE CLAMPING ANGLE
9 EARTHING TERMINAL
10 LT HRC FUSE


S No DESCRIPTION
1 PRIMARY TERMINAL
2 BODY
3 SECONDARY TERMINAL
4 PRIMARY NEUTRAL TERMINAL
5 NEUTRAL EARTH LINK
6 CORE
7 MOUNTING CHANNEL
8 PRIMARY NEUTRAL EARTHING TERMINAL
9 EARTHING TERMINAL

Download Detail File : Click Here

Technical Information For Potential Transformers

type: Resin Cast. Outdoor. Oil Cooled
Nominal System Voltage (kv) 11 33 66 132 220
Highest System Voltage (Kv) 12 36 72.5 145 245
Power Frequency withstand voltage( 1 min Kv) 28 70 140 275 460
impulse withstand voltage (KvP) 75 170 325 650 1050
Rtaed Burden 10 VA TO 500VA
Rated frequency (Hz) 50 50 50 50 50
Creepage Distance Phase To Earth (m.m) 300 900 1815 3625 6125
Rated secondary voltage
R.ted voltage factor 110 Volt 110√3 Volt
Accuracy class (IS/IEC standard) 1.2 Cont G 1.5 for 30 Second
  0.2,D.5,1.0 For Metetring ¢ 3P,5P, 6P For Protection
