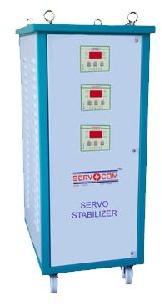

Residential Model SERVO Stabilizer

Listing ID #4236175

Get Latest Price

Capacity1Kva to 1000Kva
Output voltage230v / 240 (+/_) 1% 1phase AC 380 / 400v / 415 (+/_) 1% 3phase AC
Output voltage adjustable380v to 415 v AC in 3Phase 220 to 240v AC in 1Phase
Transformer oilIS 335, IEC 296
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Capacity 1Kva to 1000Kva
Output voltage 230v / 240 (+/_) 1% 1phase AC 380 / 400v / 415 (+/_) 1% 3phase AC
Operating Temperature 0 â to 50 â
Correction rate 35v/sec-1Phase 60v / sec-3Phase
Input voltage 140-270v / 170-270v 1Phase AC , 240-460v / 295-465v / 340-460v , 360-460v / 340-480vv 3Phase AC
Cooling Air cooled / Oil cooled
Output voltage regulation (+/_) 1% (any load)
Transformer oil IS 335, IEC 296
Operating frequency 47-53HZ
System-connections 4 wire, RYBA, star
Humidity up to 95 % RH max
Conforms to IS 9815-1994
Insulation class ‘ f ’ (Transformers)
Output voltage adjustable 380v to 415 v AC in 3Phase 220 to 240v AC in 1Phase

Special protections:
   Over load Protection
   Short Circuit trip
   ime Delay controls
   High voltage cut-off
   Low voltage cut-off

Servocom Features:
97 to 98.5% efficiency (Achieved by use of hi-quality core and copper Transformers)
Speed of correction up to 60v/sec
   Immune to load power factor and frequency variations
   Very high reliability, easy and simple maintenance
   Life expectancy 20-25 years
   System conforms to IS 9815-1994
   Transformer oil: IS 335,IEC 296

µcic-2016 Features:
Input and Output Low Voltage protections.
7-Segment Display to using view of input & output voltage, Output current.
   Output ON adjustable time delay
   Over load cut off time setting
   Voltage cut off time setting
   Output voltage adjustable setting (210-245)Volt
   Sensitivity and regulation adjustable
   Microcontroller based Programmable Control circuits

Key Function:Specifications:
Menu Key : To view parameters/ settings
Start Key : To switch ON output load/ select the digit (SET Mode)
Stop Key : To switch OFF output load/ edit the selected digit (SET Mode)
