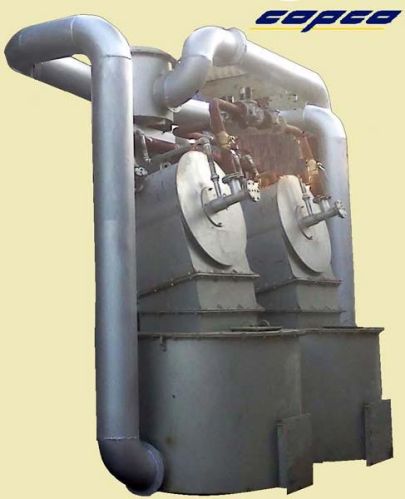

Regenerative Burner

Listing ID #1168233

We are proud to present Regenerative Burner that is the most effective Waste Heat Recovery system for high temperature furnaces like Aluminum Melting, Steel Heat treatment, etc. It has a pair of two burners having the built-in heat storage unit. In running state one burner unit exhausts combustion gas and accumulates heat, while another burner is combusting. Heat is accumulated by alternating between combustion and exhaust every 60 to 120 seconds, preheating combustion air to high temperature. By repeating the above cycle, 40 to 70% of the exhaust heat recovery can be acquired.
Salient Features :

• Exhaust heat recovery : From 40 to 70%
• Fuel Saving : 20 to 35%
• Exhaust flue gas temperature will remain below 200 ^oC
• Combustion air can be heated up to 500 ^oC
• Low heating time
• PLC operated Burner cycle switching
• Fast payback period due to high fuel saving
