Refrigeration Test Rig.

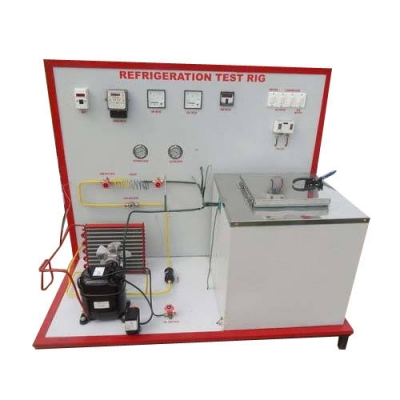

The set up demonstrates the students about the basic principal of a refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation.

• To calculate refrigerant capacity.
• To Study the Vapour Compression refrigerator cycle.
• To Calculate Co-efficient of performance and draw P-H Diagram.

•   Electric supply 5A-220 V AC
•   Water supply and drainage
•   Floor area : 1.5 m x 1m
